Key Features & Benefits
✔ Exceptional Temperature Resistance – Stable from -200°C to +600°C (higher with metal reinforcement).
✔ Superior Sealing Performance – Maintains a leak-proof seal under extreme pressure and thermal cycling.
✔ Excellent Chemical Resistance – Resists acids, alkalis, steam, and hydrocarbons.
✔ High Compressive Strength – Reinforced structure prevents blowouts in high-pressure systems.
✔ Thermal & Electrical Conductivity – Ideal for heat dissipation and static grounding.
✔ Flexible & Conformable – Adapts to uneven flange surfaces for a tight seal.
Applications

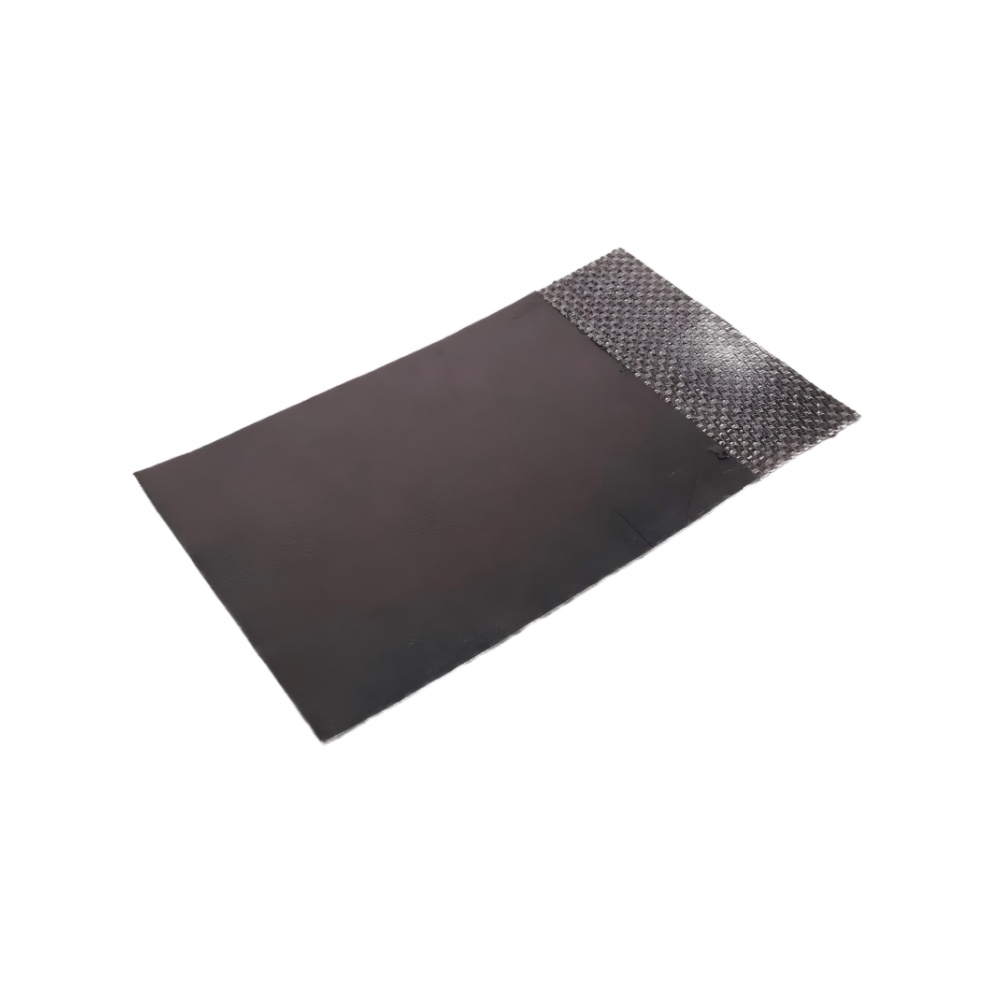

Our Reinforced Graphite Sheet is widely used in:
Oil & Gas – Flange gaskets for pipelines, valves, and compressors.
Chemical & Petrochemical – Reactors, heat exchangers, and acid-resistant seals.
Power Generation – High-temperature gaskets for turbines and boilers.
Aerospace & Automotive – Exhaust systems and thermal shielding.
Semiconductor & Furnace Manufacturing – Heat-resistant insulation.
Why Choose Our Reinforced Graphite Sheet?
✔ Longer Lifespan – Resists oxidation, creep relaxation, and thermal degradation.
✔Customizable – Available in rolls, sheets, or pre-cut gaskets (spiral-wound, kammprofile).
✔ Certified Quality – Complies with ISO 9001, ASTM F152, DIN 2690.
✔ Cost-Efficient – Reduces downtime and replacement frequency.
Ordering Information
Metal Material:Carbon Steel,ss304,ss316,Inconel625/600,Monel,C276
Metal thickness:0.05-0.2mm
Size:500*1000,1000*1000,1000*1500,1500*1500
