PTFE Gasket

PTFE Gasket Solutions: Overview and Applications

PTFE sealing delivers broad chemical resistance and clean, reliable joints in pumps, valves, heat exchangers, and pipelines. As a manufacturer with over 20 years in precision sealing, we provide virgin PTFE, ePTFE, and filled PTFE cut parts for corrosive and ultra‑pure duties, backed by application matching and fast order handling.

Why choose PTFE over other gasket materials

Compared with elastomer, non‑asbestos, or graphite options, PTFE offers near‑universal chemical compatibility, a wide temperature window, and a non‑contaminating surface for clean media. When bolt load or creep is a concern, ePTFE improves conformability and RPTFE enhances stress retention.

Key Properties and Benefits

Chemical compatibility

PTFE withstands most acids, bases, salts, and organic solvents. Its non‑wetting, low‑energy surface supports mixed media and cleaning cycles without contaminating product.

Temperature and pressure capability

Typical service spans roughly −200°C to +260°C. Pressure limits depend on flange class, thickness, and construction. Filled grades improve load‑carrying at elevated temperature and help mitigate cold flow.

Creep behavior and tightness

PTFE creeps under load. Selecting ePTFE for seating on imperfect flanges or RPTFE for better bolt‑load retention, plus correct torque and permitted re‑torque, helps maintain tightness over time.

Material Options and Selection

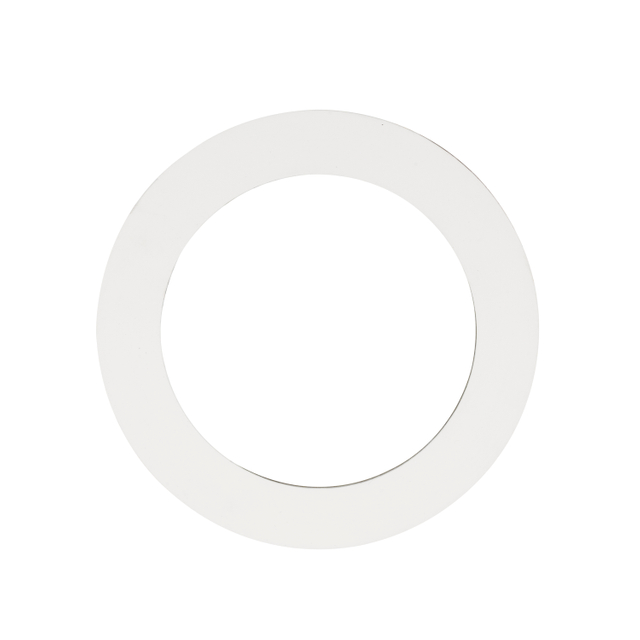

Virgin PTFE (food‑grade available)

Highest purity and broad chemical resistance for food, beverage, pharma, semiconductor, and DI water service. Food‑grade documentation available on request.

Expanded PTFE (ePTFE)

A micro‑-porous structure increases conformability and sealing at lower bolt loads. Seats well on surfaces with minor scratches and in large‑diameter or lightweight assemblies.

Reinforced/Filled PTFE (RPTFE)

Fillers raise modulus, wear resistance, and dimensional stability at temperature. Common fillers include glass, carbon, graphite, and bronze; selection balances creep resistance and compatibility.

How to choose

Match media, temperature, bolt load, and flange condition: use virgin PTFE for purity, ePTFE for flange irregularities, and RPTFE where mechanical strength is critical.

Sizes, Thickness, and Standards

Standard flange dimensions

Available to EN 1514‑1 and ASME B16.21 for raised‑face and flat‑face flanges. Bolt patterns and tolerances follow the standards.

Custom profiles

Supply CAD/DWG/SolidWorks files for non‑standard IDs/ODs, slotted holes, pass partitions, irregular shapes, and large formats. Common thicknesses are 1.0–3.0 mm; others on request.

Application Guide

Pumps, valves, and pipelines

Reliable sealing for acid/alkali transfer, solvent lines, and scrubbers. Handles frequent thermal cycles and media changes without product contamination.

Heat exchangers and process equipment

Use ePTFE where surface irregularities and large sealing areas demand high conformability and uniform stress.

Food and pharmaceutical processes

Virgin PTFE with food‑grade options supports hygienic designs, CIP/SIP cycles, and low extractables.

Manufacturing and Customization

CNC cutting and materials engineering deliver consistent quality. Services include drawing‑based engineering support, rapid sampling, and private labeling for traceability.

Installation Best Practices

Flange surface and roughness

ePTFE tolerates minor scratches. Virgin and filled PTFE perform best on smoother finishes to limit leak paths and extrusion.

Torque and re‑torque

Use calibrated tools and incremental cross‑bolting. Re‑check torque after first heat‑up when procedures allow to counter initial relaxation.

Quality, Traceability, and Compliance

We source high‑purity PTFE with batch traceability. Each batch is checked for identity, thickness, dimensions, flatness, and visual integrity. Food‑grade documentation is available upon request.

What Sets Our Range Apart

We deliver engineered solutions with EN 1514‑1 and ASME B16.21 conformity, plus cross‑material expertise in ePTFE and RPTFE. We support audits, failure‑prevention guidance, and cost optimization. Contact the PTFE gasket manufacturer team to request a quote or discuss your application.

Related Sealing Options

For higher pressures or extreme temperatures, consider spiral wound or kammprofile designs. For thermal cycling with high load retention, graphite gaskets are available. Insulation kits can provide electrical isolation in pipelines.

Quick Selection Checklist

✅Media: compatibility and purity level

✅Temperature/pressure: extremes and cycling

✅Flange condition: surface finish, flatness, available bolt load

✅Type: virgin PTFE, ePTFE, or RPTFE

✅Thickness: balance conformability and stress retention

✅Documentation: food‑grade and material certificates if required

FAQ

Q: When should I choose ePTFE instead of virgin PTFE?

A: Select ePTFE for imperfect or large flanges, lower bolt loads, or when enhanced conformability is needed. Use virgin PTFE when purity is the priority and surfaces are in good condition.

Q: Which fillers in RPTFE are most common, and why?

A: Glass and carbon improve stiffness and creep resistance; graphite aids temperature stability; bronze can enhance wear. Selection depends on media and temperature.

Q: Can PTFE handle oxidizing agents like chlorine or nitric acid?

A: PTFE is generally compatible with strong oxidizers at moderate temperatures. Verify conditions, pressure, and any fillers for specific service before selection.
