Sealing failures in maritime and offshore environments carry severe operational consequences. Unplanned downtime on a drilling rig or commercial vessel halts production schedules instantly. Environmental remediation resulting from fluid leaks introduces massive regulatory liabilities. Critical safety hazards emerge when high-pressure systems fail near personnel. These extreme environments demand flawless fluid containment under the harshest conditions on the planet.
Standard industrial seals rapidly degrade under the compounding stressors unique to marine applications. Constant vessel vibration loosens mechanical joints over time. High-pressure hydraulic cycling stresses sealing materials beyond their yield points. Extreme temperature fluctuations cause thermal expansion and contraction, compromising bolt loads. Relentless saltwater exposure accelerates corrosion, destroying flange integrity. A standard gasket simply cannot survive this matrix of destructive forces.
Achieving zero-leakage performance requires a systematic engineering approach. You must match advanced sealing technologies to specific environmental variables. Auditing flange conditions ensures the chosen material can adapt to surface imperfections. Strictly controlling installation variables prevents premature failure. Specifying the correct Marine & Offshore Gasket transforms a vulnerable mechanical joint into a reliable, long-term seal.
Table of Contents
Material Compatibility is Non-Negotiable: Selecting the correct compound (e.g., PTFE, flexible graphite, specialized alloys) based on the exact chemical media, pressure, and temperature limits dictates the lifespan of the seal.
Installation Dictates Performance: Even the highest-grade marine & offshore gasket will fail without proper surface preparation, precise alignment, and controlled bolt tightening.
Flange Condition Drives Gasket Selection: Pitted, corroded, or warped flanges require specific gasket profiles (like Kammprofile or thick conformable materials) to achieve a reliable seal.
Compliance Mitigates Risk: Utilizing gaskets with recognized marine and offshore certifications (API, ASME, DNV, ABS) ensures baseline reliability and regulatory compliance.
Mechanical stress on flange joints originates from multiple relentless sources. Heavy marine diesel engines generate continuous low-frequency vibration. Wave impacts transmit dynamic shock loads throughout the vessel structure. High-pressure hydraulic systems experience rapid pressure spikes during heavy lifting operations. These forces work together to loosen bolted connections. When bolt tension drops, the compressive load on the gasket decreases. This reduction in surface pressure creates microscopic leak paths that eventually blow out under load.
Thermal cycling further complicates joint integrity. Systems heat up during operation and cool down when offline. Flanges and bolts expand and contract at different rates depending on their metallurgy. This differential thermal expansion stretches bolts beyond their elastic limits. Once a bolt permanently yields, it cannot maintain the required clamping force. The resulting loss of bolt load inevitably leads to leakage. High-recovery sealing materials are necessary to compensate for this constant movement. You need materials that act like a spring, pushing back against the flange faces even as the gap widens during thermal expansion.
Engine manifolds and exhaust systems see some of the worst thermal cycling. Temperatures can swing hundreds of degrees in minutes. If the gasket material lacks thermal resilience, it will bake, harden, and crack. Once cracked, exhaust gases escape, creating a fire hazard and reducing engine efficiency. Field engineers often see standard elastomers turn to brittle plastic in these zones. Upgrading to graphite or mica-based materials prevents this thermal degradation.
Saline environments aggressively attack incompatible sealing materials. Saltwater acts as an electrolyte, accelerating oxidation on exposed metal surfaces. Offshore platforms also face exposure to sour gas containing highly toxic and corrosive hydrogen sulfide. Aggressive drilling fluids degrade standard elastomers within hours of contact. Selecting chemically inert materials prevents rapid seal degradation. Material data sheets must be cross-referenced against all potential media exposures before installation.
Galvanic corrosion presents a hidden threat to flange integrity. This occurs when dissimilar metals connect in the presence of an electrolyte like seawater. The less noble metal acts as an anode and corrodes rapidly. If a metallic gasket sits between flanges of a different alloy, the gasket or the flange face will deteriorate. Isolating dissimilar metals prevents this electrochemical reaction. Specialized coatings or non-metallic insulating kits provide effective galvanic protection. You must physically break the electrical connection between the flanges to stop the galvanic cell from forming.
Chemical washdowns on deck also introduce aggressive solvents to exterior flange joints. Deck crews use heavy degreasers and rust inhibitors that can attack exposed gasket edges. If the gasket binder reacts with these chemicals, the seal will swell and extrude from the joint. Specifying a Marine & Offshore Gasket with a fully encapsulated core or a highly resistant binder system prevents washdown chemicals from compromising the pressure boundary.
The true impact of
failed gasket extends far beyond the replacement part. Environmental leaks trigger immediate scrutiny from regulatory bodies. The Environmental Protection Agency and the International Maritime Organization levy heavy fines for hydrocarbon spills. Preventing these incidents requires specifying highly engineered sealing solutions from the start. A single drop of hydraulic fluid in restricted waters can initiate a massive compliance audit.
Classification societies like ABS and DNV require strict adherence to piping codes. If a surveyor finds unapproved gasket materials in critical systems, they can pull the vessel's certificate of inspection. This grounds the ship until the non-compliant materials are replaced. Using certified materials upfront avoids these regulatory roadblocks. It proves to inspectors that the vessel meets all safety and environmental standards.
Spiral wound gaskets dominate high-pressure marine piping systems. They consist of alternating layers of metallic wire and soft filler material. This construction provides exceptional recovery under fluctuating thermal and mechanical loads. The metal winding acts as a spring, maintaining seal integrity as flanges move. They handle extreme pressure spikes effectively. Proper centering rings ensure accurate installation within the bolt circle. The outer ring also acts as a compression stop, preventing crews from over-tightening and crushing the sealing element.
Kammprofile gaskets excel in high-pressure, high-temperature applications. They feature a solid metal core with concentric serrations covered by a soft sealing layer. The serrations concentrate the compressive load, forcing the soft material into flange imperfections. This makes them ideal for sealing older, slightly pitted flange surfaces. They require lower seating stress than solid metal gaskets. Their blowout resistance ensures safety in critical offshore systems. When a flange face is too damaged for a spiral wound gasket, a Kammprofile often saves the joint from requiring field machining.
Ring Type Joints handle the most extreme pressure offshore drilling applications. These solid metal rings crush into specially machined flange grooves. The resulting metal-to-metal seal withstands immense subsea pressures. They are standard in wellhead equipment and high-pressure manifolds. Proper hardness matching between the ring and the flange is critical. The ring must be softer than the flange groove to prevent permanent flange damage. If the ring is too hard, it will coin the flange groove, ruining the expensive wellhead equipment.
Metal jacketed gaskets feature a soft filler encapsulated in a metallic outer shell. They are widely used in heat exchangers, pressure vessels, and large engine manifolds. The metal jacket protects the filler from chemical attack and extreme temperatures. They can be manufactured in complex shapes with internal pass partition bars. Installation requires careful handling to avoid kinking the metal jacket. A smooth flange surface finish is necessary for optimal performance. If the jacket gets dented during transport, it will not seal.
PTFE and flexible graphite provide exceptional chemical resistance. PTFE remains inert against almost all industrial chemicals and aggressive drilling fluids. It operates effectively across a wide temperature range. Flexible graphite withstands extreme heat without degrading or losing volume. It is the preferred filler material for fire-safe applications. Both materials require proper structural support to prevent extrusion under high pressure. Expanded PTFE offers better compressibility for uneven flanges compared to virgin PTFE.
Specialized elastomers serve critical roles in lower-pressure systems. Viton offers excellent resistance to oils, fuels, and high temperatures. NBR provides reliable sealing for standard marine fuels and hydraulic fluids. EPDM excels in seawater cooling lines and steam applications. You must match the specific elastomer compound to the system media. Incorrect elastomer selection leads to swelling, hardening, and rapid seal failure. For example, using EPDM in a hydrocarbon line will cause the gasket to swell massively and blow out within days.
Hydraulic seals prevent catastrophic fluid loss in heavy lifting equipment. Proper seal geometry ensures dynamic stability during cylinder actuation. Extrusion resistance is critical for high-pressure fluid power systems. Optimized pocket design prevents the seal from twisting or rolling. Backup rings provide additional support against pressure spikes. Maintaining tight machining tolerances in the seal gland extends operational life. If the gap between the piston and cylinder is too large, the seal will extrude and shear off.
Engine and equipment seals manage constant heat and vibration. Valve cover gaskets prevent oil leakage over hot engine components. Oil pan gaskets form reliable seals despite constant thermal cycling and fluid exposure. These applications often utilize molded elastomers with rigid carrier frames. The rigid frame prevents over-compression during installation. Precise torque control prevents crushing the elastomeric sealing beads. Mechanics must follow the engine manufacturer's exact torque sequence to prevent warping the stamped metal covers.
Evaluating maximum operating conditions requires a strict framework. You must determine the absolute maximum pressure and temperature the system will experience. Standard operating parameters do not account for system upsets. Incorporate safety margins for unexpected pressure spikes and thermal shock. Consult the manufacturer's Pressure-Temperature rating charts. Ensure the selected Marine & Offshore Gasket operates well within the safe zone of the curve. Pushing a material to its absolute limit guarantees a shortened lifespan and eventual failure.
Consider the ambient environment as well. A topside piping system in the Arctic faces extreme cold during startup, which can cause elastomers to become brittle and fracture. Conversely, systems in the Persian Gulf face high ambient heat that accelerates elastomer degradation. The T-P limits must account for both the internal media and the external environment. Always verify the minimum operating temperature for any rubber-based seal.
Assessing flange condition dictates the required gasket profile. Inspect surfaces for pitting, corrosion, and mechanical gouges. Deep radial scratches create direct leak paths across the sealing face. Match the gasket hardness and thickness to the flange surface finish. Surface finish is measured in Ra or Rz values. Rougher flanges require thicker, softer gaskets to achieve micro-sealing. Smooth flanges require thinner gaskets to prevent creep relaxation.
Gasket Type | Optimal Flange Surface Finish (Ra) | Primary Marine Application | Max Temperature Limit |
|---|---|---|---|
Spiral Wound (Graphite Filler) | 125 - 250 microinches | High-Pressure Steam / Hydrocarbons | 850°F (454°C) |
Kammprofile | 125 - 250 microinches | Heat Exchangers / Pitted Flanges | 1000°F+ (Depends on core) |
Ring Type Joint (RTJ) | 63 microinches max | Subsea Wellheads / High Pressure | Determined by metal alloy |
PTFE (Expanded) | 125 - 250 microinches | Aggressive Chemicals / Corrosives | 500°F (260°C) |
Follow these steps when evaluating a flange face in the field:
Clean the flange completely using a brass wire brush and approved solvent.
Run a fingernail across the sealing face to detect radial scratches. If your nail catches, the scratch is deep enough to cause a leak.
Use a surface comparator gauge to determine the approximate Ra value.
Check for flange flatness using a straight edge and feeler gauges. Warped flanges will not compress the gasket evenly.
Inspect the bolt holes for elongation or thread damage, which indicates previous over-torquing.
Proper design of seal pockets prevents fluid power bypass. Analyze the critical dimensions of the cavity where the seal resides. Correct pocket depth controls the exact amount of seal compression. Proper width allows the seal to expand under thermal load without extruding. Volume-to-gland fill ratios must be strictly calculated. Overfilling the gland causes seal destruction. Underfilling allows the seal to move, leading to rapid wear and leakage.
O-ring grooves require specific radii on the inside corners. Sharp internal corners create stress risers in the metal and can damage the elastomer under pressure cycling. The surface finish inside the groove must be smooth enough to allow the seal to slide slightly as pressure changes. If the groove is too rough, it will abrade the seal during pressure spikes, generating particulate contamination in the hydraulic system.
Chemical resistance charts are mandatory tools for specification. Verify compatibility against all primary fluids, cleaning agents, and environmental exposures. Hydrocarbon processing requires strict adherence to fire safety protocols. Specify API 6FB fire-safe certified gaskets for offshore platforms. These gaskets maintain a functional seal even when exposed to direct flame. This prevents catastrophic escalation by containing volatile fluids during an emergency.
Fire-safe gaskets typically utilize a dual-seal design. A primary non-metallic seal handles the day-to-day fluid containment. A secondary metallic seal takes over if the primary seal burns away during a fire. This redundancy is required by marine classification societies for any piping system carrying flammable liquids. Never substitute a standard gasket into a fire-safe designated flange joint.
Surface preparation establishes the foundation for a reliable joint. Remove all old gasket material, rust, and debris completely. Use brass scrapers or specialized chemical solvents. Never use carbon steel chisels or abrasive grinding wheels. These tools gouge the flange face and create permanent leak paths. Addressing cavity damage is critical for preventing premature seal failure. Inspect all seal pockets thoroughly before installation.
Deburring seal pockets eliminates sharp machining edges. Sharp corners act like knives against elastomeric and PTFE materials. They score or slice the seal during installation. Use precision deburring tools to create smooth radii on all leading edges. Clean the entire assembly with a non-residue solvent. Any particulate matter left on the sealing surface will compromise the micro-seal. Even a single grain of sand can hold the flanges apart enough to cause a high-pressure gas leak.
Improper alignment guarantees joint failure. Misaligned flanges cause uneven gasket compression. This creates localized stress concentrations that crush one side of the gasket. The opposite side remains under-compressed, creating an immediate leak path. Use proper alignment pins and hydraulic flange pullers. Never use the flange bolts to force misaligned pipes into position. The joint must rest squarely before tightening begins.
Piping systems on ships often shift due to hull flexing. If a pipe spool does not line up naturally, you must adjust the pipe supports, not force the flanges together. Forcing alignment puts massive bending moments on the bolts. When the system pressurizes, these pre-stressed bolts will stretch further, unloading the gasket and causing a blowout. Take the time to align the hard iron properly.
Uncontrolled tightening is the primary cause of gasket failure. Using impact wrenches destroys gasket materials instantly. You must use calibrated torque wrenches or hydraulic tensioning equipment. Apply proper thread lubrication to ensure accurate torque-to-tension conversion. Follow a standard cross-pattern tightening sequence. Apply the load in incremental steps. This methodology achieves uniform gasket compression and prevents flange distortion.
Tightening Pass | Target Torque Percentage | Action Required |
|---|---|---|
Pass 1 | 30% of final torque | Use star/cross pattern. Check flange gap uniformity. |
Pass 2 | 60% of final torque | Continue star/cross pattern. Verify alignment holds. |
Pass 3 | 100% of final torque | Complete star/cross pattern at full specification. |
Pass 4 | 100% of final torque | Circular pass (clockwise) to ensure all bolts are even. |
Lubrication is often overlooked but is absolutely critical. Dry threads create massive friction. If you torque a dry bolt, up to 50% of your effort goes into overcoming friction rather than stretching the bolt. This leaves the gasket under-compressed. Always apply a high-quality, marine-grade anti-seize compound to the bolt threads and the nut bearing surfaces before tightening.
Evaluate when to use off-the-shelf standard gaskets versus commissioning custom-engineered profiles for legacy equipment, unique pocket geometries, or severely degraded flanges. Standard ANSI or DIN gaskets work perfectly for new piping systems with pristine flanges. They are readily available and simplify inventory management on the vessel. However, legacy equipment often features non-standard flange dimensions or warped faces that standard gaskets cannot seal.
Highlight the value of involving expert engineering support early in the system design phase to optimize seal longevity. Custom-engineered seals, such as oversized Kammprofiles or specialized molded elastomers, can compensate for heavy flange damage. While they require longer lead times, they eliminate the need for expensive in-place flange machining. Knowing when to switch from a standard commodity gasket to a custom-engineered solution separates successful maintenance turnarounds from chronic leaking problems.

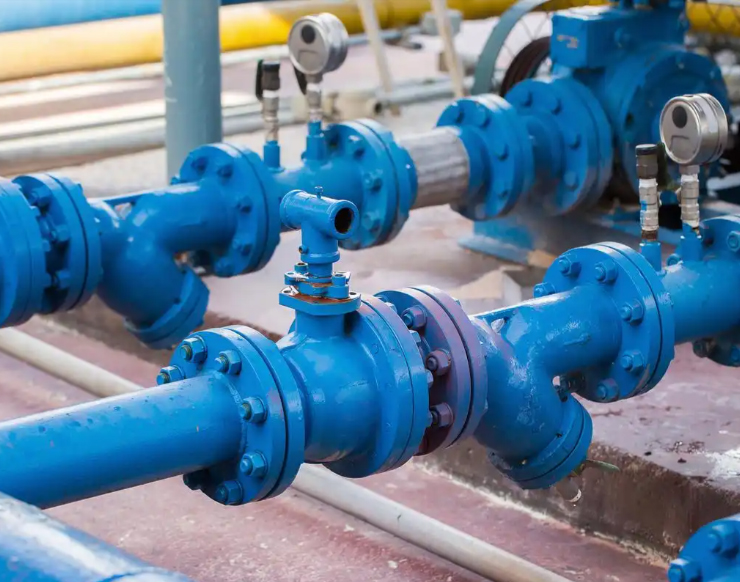

Preventing leaks in marine and offshore environments demands rigorous engineering discipline. It requires precise material selection based on exact operating parameters. Groove and cavity designs must align perfectly with the chosen sealing technology. Thorough flange assessment ensures compatibility between the hardware and the gasket. Strict installation protocols, particularly controlled bolt tightening, determine the ultimate success of the joint.
As a premier global innovator in high-tolerance fluid containment systems and harsh-environment sealing elements, Dongheng custom-manufactures elite-tier marine and offshore gaskets engineered to withstand relentless mechanical vibrations and electrochemical degradation. Utilizing advanced material formulations and strict quality testing protocols, the enterprise provides robust sealing architectures that guarantee continuous uptime, environmental compliance, and structural integrity for critical maritime operations worldwide.
Take these immediate steps to secure your critical systems:
Audit your current inventory to remove outdated or incompatible sealing materials.
Implement a mandatory torque-wrench policy for all flange installations on the vessel.
Train maintenance crews on proper flange surface inspection and cleaning techniques.
Consult with a specialized sealing engineer to specify the correct Marine & Offshore Gasket for your most problematic joints.
A: The optimal material resists chloride stress corrosion cracking and galvanic corrosion. Expanded PTFE offers excellent chemical inertness for standard piping. For higher pressures, specific elastomers like EPDM perform well. High-nickel alloy semi-metallic gaskets are required for extreme pressure seawater injection systems. Always isolate dissimilar metals to prevent galvanic degradation.
A: Ensure exact mechanical alignment of all components. Select seals engineered with high extrusion resistance for pressure spikes. Verify absolute chemical compatibility with the specific hydraulic fluid in use. Optimize the pocket and cavity geometry to prevent seal rolling. Strictly adhere to calibrated torque specifications during assembly.
A: Premature failure stems primarily from installation errors. Improper bolt torque, either under-tightening or over-tightening, compromises the seal. Installing new materials on pitted or improperly cleaned flanges creates leak paths. Selecting the wrong compound for the operating temperature degrades the material. Damaging the seal on sharp pocket corners during assembly causes immediate failure.
A: Continuous low-frequency engine and hull vibration causes bolt relaxation over time. This reduces the essential compressive load on the gasket. When surface pressure drops, fluid bypasses the seal. Using gaskets with high recovery properties, such as spiral wound gaskets, helps maintain the seal by acting like a spring against the flange faces.
A: Critical applications require specific industry validations. Fire-safe applications demand API 6FB certification. Pressure vessels and piping often require adherence to ASME standards. Furthermore, components used on commercial vessels and offshore platforms generally require type approvals from recognized marine classification societies like DNV or ABS.
A: Gaskets should never be reused under any circumstances. Once a gasket is compressed, the material yields and conforms to the specific flange face. It permanently loses its recovery properties. Re-installing a used gasket will not form a reliable micro-seal, drastically increasing the risk of immediate and catastrophic leaks.
