Did you know that nearly 70% of industrial leaks trace back to gasket issues?Understanding how spiral wound gaskets are made is crucial for ensuring effective sealing in high-pressure environments. These gaskets play a vital role in industries like oil and gas, where reliability is paramount.
In this post, we’ll explore the manufacturing process of spiral wound gaskets. You’ll learn about the materials used, the intricate winding process, and the quality control measures that ensure their performance. Join us as we dive into the fascinating world of gasket production!

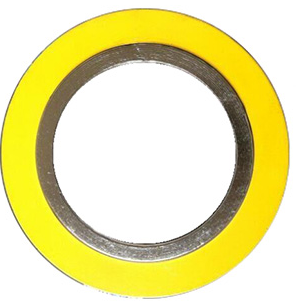

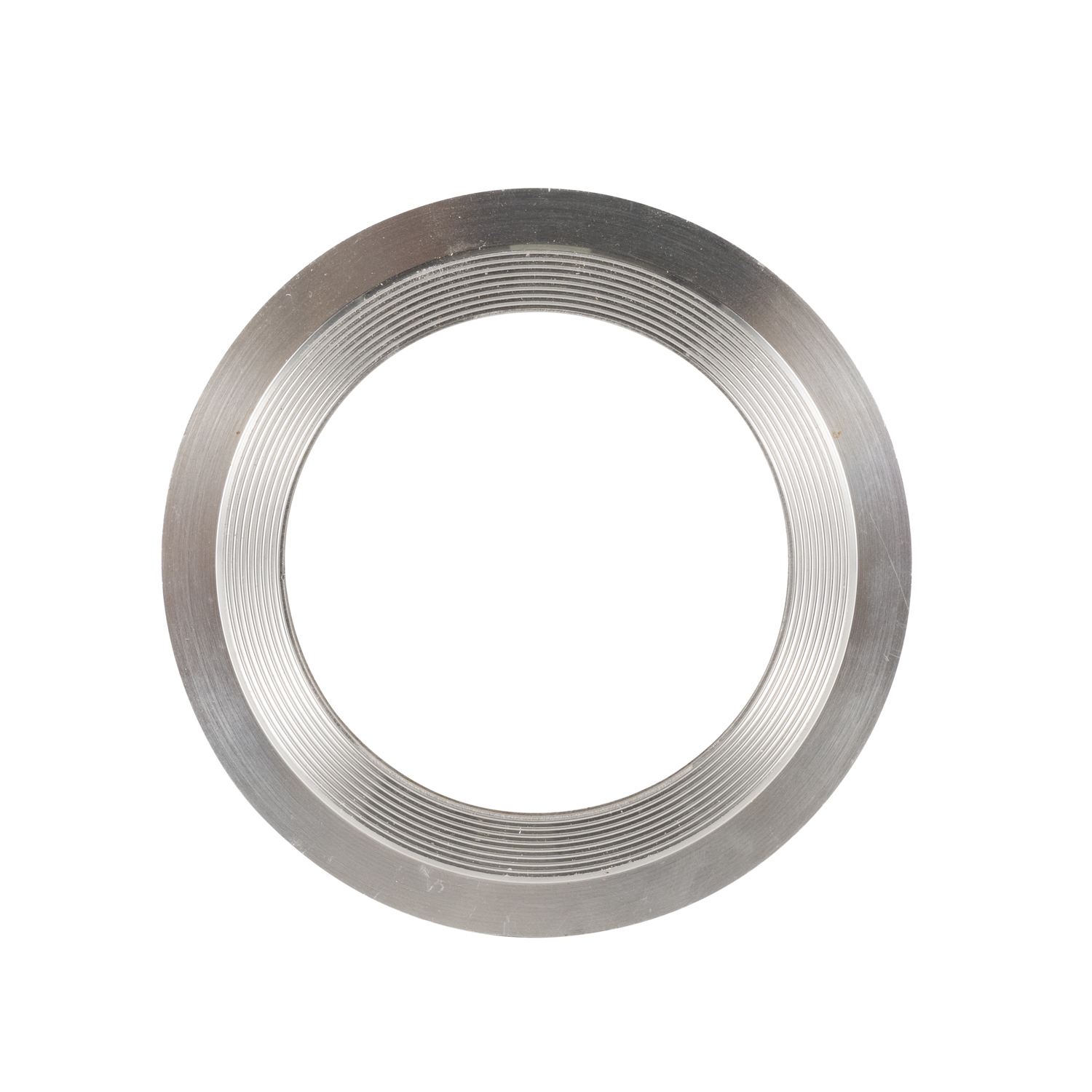

A spiral wound gasket is a semi-metallic sealing solution designed for high-pressure and high-temperature applications. It consists of alternating layers of metal strips and soft filler materials, which are wound together to create a flexible yet durable sealing element.
Key Components:
● Metal Strips: Often made from stainless steel, these strips provide structural integrity and resilience.
● Filler Materials: Common options include graphite, PTFE, and mica. These materials enhance sealing properties and chemical resistance.
● Outer Ring: This solid metal ring centers the gasket and controls compression, preventing over-tightening.
● Inner Ring: Optional but beneficial, it supports the windings and protects the filler from contamination.
The unique design of spiral wound gaskets allows them to maintain a reliable seal even under fluctuating conditions, making them a popular choice across various industries.
Spiral wound gaskets are widely used across multiple sectors due to their versatility and reliability. Here are some key industries where they play a crucial role:
● Oil and Gas: They are essential in pipelines and refineries, where high pressure and temperature are common. A reliable seal prevents leaks that could lead to catastrophic failures.
● Chemical Processing: In this industry, gaskets must withstand aggressive chemicals. Spiral wound gaskets provide the necessary resistance to ensure safety and efficiency.
● Pharmaceuticals: Here, contamination is a significant concern. The design of spiral wound gaskets minimizes the risk of leaks, ensuring product integrity.
● Petrochemical: Similar to oil and gas, these facilities require gaskets that can handle extreme conditions without failing.
The reliability of spiral wound gaskets in high-pressure and high-temperature environments cannot be overstated. They help prevent costly downtime and ensure operational safety.
Industry | Key Benefits |
Oil and Gas | Prevents leaks in pipelines |
Chemical Processing | Resists aggressive chemicals |
Pharmaceuticals | Minimizes contamination risks |
Petrochemical | Maintains integrity under extreme conditions |
The combination of materials and construction methods makes spiral wound gaskets a trusted choice for industries where performance is critical. Their ability to adapt to various operational demands ensures they remain a staple in sealing technology.
Manufacturing a spiral wound gasket involves several critical steps to ensure quality and reliability. The process typically includes:
1. Material Preparation: Selecting appropriate metals and fillers is essential, as these choices directly influence the gasket's performance in various applications.
2. Winding: Using specialized machines to create the gasket structure, this step is where the magic happens, as it determines the gasket's ability to seal effectively under pressure.
3. Quality Control: Monitoring dimensions and performance throughout production ensures that every gasket meets stringent industry standards.
Each step is vital in producing a gasket capable of withstanding the demands of high-pressure environments, making the understanding of this process crucial for manufacturers and users alike.
The choice of materials significantly impacts the performance of spiral wound gaskets. Here’s a breakdown of what’s commonly used:
● Metals:
○ Stainless Steel: Provides excellent corrosion resistance and strength, making it ideal for harsh environments.
○ Carbon Steel: Offers good mechanical properties at a lower cost, suitable for less aggressive applications.
● Filler Materials:
○ Graphite: Ideal for high-temperature applications, it can withstand extreme conditions without losing its sealing capability.
○ PTFE: Known for its chemical resistance, PTFE is often used in applications where exposure to aggressive chemicals is a concern.
○ Ceramic: Used in specialized applications requiring high thermal stability, providing excellent performance in extreme heat.
○ Non-Asbestos Materials: Increasingly used for safety compliance, these materials help manufacturers meet regulatory requirements while ensuring effective sealing.
○ Mica: Provides good electrical insulation and thermal resistance, making it suitable for electrical applications.
These materials are selected based on the specific needs of the application, ensuring that every gasket performs optimally in its intended environment.
The winding machine is at the heart of the manufacturing process. It consists of several key components:
● Main Machine: Responsible for the winding action, this machine must be robust and reliable to produce consistent results.
● Feed System: Delivers metal strips and filler materials accurately, ensuring that the winding process is efficient and precise.
● Gas Source: Often used for heating, this component ensures proper adhesion between layers, critical for the gasket's integrity.
● Control System: Automates the winding process for precision, allowing for adjustments based on different gasket diameters and specifications.
Precision is vital in this stage. The machine can adjust to different gasket diameters and specifications, ensuring a perfect fit for various applications. This adaptability is essential in meeting diverse customer needs and industry requirements.
During the winding process, metal strips and filler materials are carefully wound together. This is how it works:
● Tension Control: Maintaining the right tension is crucial for quality. Too much tension can lead to deformation, while too little can affect sealing efficiency. This balance is key to achieving the desired performance characteristics.
● Spring-like Function: The unique winding design allows the gasket to compress and expand, creating a reliable seal under pressure. This spring-like behavior ensures that the gasket maintains its sealing capability even as conditions change.
This careful winding process ensures that each gasket performs optimally in its intended environment, providing peace of mind to users in critical applications.
Quality control is integral to the production of spiral wound gaskets. Here’s how it’s done:
● Online Measurement: Continuous monitoring of dimensions during winding helps catch issues early, preventing defects from reaching the final product.
● Standards and Certifications: Compliance with ASME B16.20 and other industry standards ensures reliability. These certifications provide assurance to customers about the quality and performance of the gaskets they purchase.
● Revisions to Standards: The 2017 updates to ASME standards focused on maximum compression and gasket stress, further enhancing quality assurance. Staying updated with these standards is crucial for manufacturers aiming to maintain a competitive edge.
By adhering to these measures, manufacturers can produce gaskets that meet the highest reliability standards. This commitment to quality not only enhances customer satisfaction but also builds long-term trust in the brand, making it a leader in the industry.
Manufacturing spiral wound gaskets isn't without its challenges. Here are some common issues that arise:
● Equipment Limitations: Many facilities rely on outdated machinery, which can lead to inefficiencies and increased production costs. Equipment failures can also cause delays, impacting overall output.
● Quality Variability: Manual processes often introduce inconsistencies. Without automation, it’s difficult to maintain uniform quality across batches, leading to potential failures in sealing performance.
● Low-Stress Gaskets: While these gaskets offer advantages, they face challenges in meeting industry standards. Their design requires precise control during manufacturing to ensure reliability under varying conditions.
To address these challenges, the industry is embracing several innovative solutions:
● Technological Advances: New manufacturing technologies are being adopted to enhance efficiency. Automated systems reduce human error and improve consistency in product quality.
● CNC Equipment Development: The rise of specialized CNC (Computer Numerical Control) machines allows for higher precision in gasket production. This technology ensures that each gasket meets exact specifications, reducing waste and improving performance.
● Exploration of Low-Stress Gaskets: Research continues into optimizing low-stress gaskets. By refining their design and production methods, manufacturers can enhance their reliability while maintaining the benefits of reduced compression.
Innovation Area | Benefits |
Automation | Reduces human error, increases efficiency |
CNC Technology | Ensures precision, minimizes waste |
Low-Stress Gaskets | Improves reliability, meets standards |
By implementing these solutions, manufacturers can overcome existing hurdles, ensuring that their spiral wound gaskets meet the rigorous demands of various industries. This proactive approach not only enhances product quality but also boosts overall operational efficiency.
Knowing how a spiral wound gasket is made can significantly impact your selection process. Here’s why:
● Informed Decisions: Understanding the materials and methods used in production helps you identify reliable gaskets. You can assess whether the manufacturer adheres to industry standards, ensuring quality. This knowledge empowers you to choose products that will perform effectively in your specific applications.
● Performance Insights: Knowledge of the manufacturing process allows you to evaluate how different designs affect sealing performance. For example, understanding the role of filler materials and metal types can guide you in selecting the right gasket for high-temperature or chemically aggressive environments. This insight is crucial for applications where reliability is paramount, such as in oil and gas or chemical processing industries.
● Traceability: If you know the production steps, you can better trace any issues back to their source. This capability is invaluable when addressing failures, as it can save time and resources. By pinpointing where a potential problem arose, you can implement corrective measures swiftly, enhancing overall operational efficiency.
Investing in high-quality spiral wound gaskets can lead to long-term savings. Here’s how:
● Reduced Maintenance Costs: High-quality gaskets are designed to withstand harsh conditions. This durability means fewer replacements and lower maintenance expenses over time. For instance, a gasket that can endure high pressure and temperature fluctuations will require less frequent changes, ultimately saving money on labor and materials.
● Minimized Downtime: A reliable gasket reduces the risk of leaks and failures, leading to less unplanned downtime. This is especially important in industries where every minute of operation counts. The cost of downtime can be staggering, often exceeding thousands of dollars per hour in lost productivity. Investing in quality gaskets mitigates this risk.
● Long-Term Value: While the initial investment may be higher, the longevity and reliability of quality gaskets often outweigh the upfront costs. You end up saving money in the long run. Consider the total cost of ownership; a more expensive, high-quality gasket may last several years longer than a cheaper alternative, resulting in significant savings over its lifespan.
Benefit | Description |
Reduced Maintenance | Fewer replacements lead to lower costs |
Minimized Downtime | Reliable gaskets prevent unexpected failures |
Long-Term Value | Higher initial investment pays off over time |
Understanding the manufacturing process not only enhances your ability to choose the right products but also contributes to overall operational efficiency. By selecting the right spiral wound gasket, you can ensure better performance and significant cost savings. This informed approach ultimately leads to a more reliable operation, where equipment runs smoothly and efficiently, reducing the likelihood of costly interruptions and enhancing productivity across the board.
Spiral wound gaskets are crucial for reliable sealing in various industries. Understanding their manufacturing process enhances quality assurance and cost efficiency. Proper selection and installation are vital for optimal performance. At Dongheng Sealing, we offer high-quality spiral wound gaskets designed for durability and reliability. Our products provide exceptional value, ensuring your operations run smoothly. Trust Dongheng Sealing for your sealing needs and experience the difference in performance and quality.
A: A spiral wound gasket is a sealing device made from alternating layers of metal and filler material, designed for high-pressure applications.
A: Spiral wound gaskets are manufactured through material preparation, winding, and quality control to ensure reliability and performance.
A: They are used for their excellent sealing capabilities, durability, and ability to withstand extreme temperatures and pressures.
A: Common materials include stainless steel for strength and graphite or PTFE fillers for chemical resistance.
A: Consider the application requirements, including temperature, pressure, and the materials being sealed, to ensure optimal performance.
A: They offer superior sealing performance, reduced maintenance costs, and long-term reliability in various industrial settings.
A: Inspect the installation for proper tension and alignment, and ensure the correct gasket type was used for the application.
