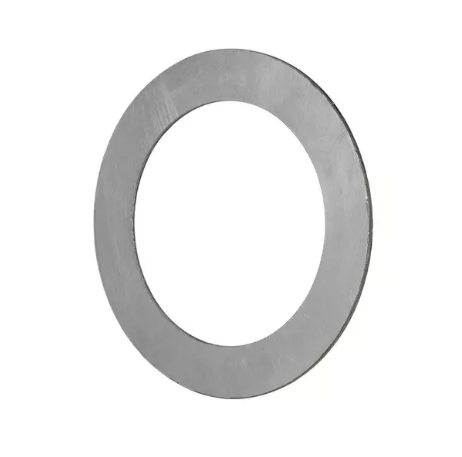

A Corrugated with Soft Material Gasket is designed to prevent leaks in high-pressure, high-temperature, and chemically aggressive environments. It features a flexible metal core with a soft material like graphite or PTFE to enhance sealing. These gaskets are crucial for industries like oil and gas, chemical processing, and power generation, offering durability and reliability under demanding conditions. In this article, we’ll explore their structure, benefits, and applications, helping you understand when to use them for optimal performance.
The primary component of a Corrugated with Soft Material Gasket is its metal core, which is precisely corrugated to enhance flexibility and improve the gasket's adaptability to various sealing surfaces. The corrugated structure allows the gasket to compress under pressure, forming a tight seal that can withstand environmental stresses. The soft material, typically graphite or PTFE, is used to enhance the sealing properties, providing resistance to chemical exposure and thermal cycling.
The core of the gasket is usually made from strong materials such as stainless steel, carbon steel, or Inconel, selected for their ability to withstand high pressures and temperatures. Soft materials like graphite or PTFE are used on the gasket's surfaces to increase sealing effectiveness. These materials are chosen based on their durability, temperature resistance, and chemical compatibility.
The Corrugated with Soft Material Gasket works by applying compressive force between the flanges, causing the gasket to compress and conform to the uneven surfaces of the flange. The corrugated core offers flexibility, while the soft material enhances the sealing by filling any microscopic gaps, preventing leaks even under fluctuating pressures and extreme temperatures. This dual mechanism of action provides a highly effective and reliable seal.
Material | Purpose | Benefits | Common Applications |
Stainless Steel | Core material for strength and flexibility | Corrosion resistance, high strength | Chemical processing, Power generation |
Inconel | High-temperature resistance | Can withstand extreme temperatures | High-temperature industrial systems |
Graphite (Soft Material) | Sealing element for chemical resistance | Excellent compression and recovery | Chemical, petrochemical industries |
PTFE | Sealing material for chemical resistance | Non-reactive, high-temperature tolerance | Food processing, pharmaceuticals |
One of the key advantages of the Corrugated with Soft Material Gasket is its enhanced sealing performance. The corrugated design allows for multiple sealing lines when the gasket is compressed, ensuring a tight seal even when the flange surfaces are uneven. The soft material on the gasket surface helps to conform to imperfections, offering a more reliable seal in challenging applications.
These gaskets are designed to perform well under extreme temperatures and fluctuating pressures. The corrugated metal core provides excellent mechanical strength, while the soft material offers resistance to high temperatures. This combination makes the gasket ideal for use in high-pressure systems where traditional gaskets might fail.
The Corrugated with Soft Material Gasket is highly resistant to aggressive chemicals. The metal core is often made from corrosion-resistant materials, such as stainless steel or Inconel, while the soft material layer, like PTFE or graphite, provides additional resistance to chemical exposure. This makes the gasket suitable for use in industries like petrochemicals and pharmaceuticals, where exposure to harsh chemicals is common.
Although Corrugated with Soft Material Gaskets may have a higher initial cost compared to traditional gaskets, their durability and resistance to wear make them a cost-effective option in the long run. Their ability to withstand harsh conditions reduces the frequency of replacement, saving on both material and labor costs over time.
Another benefit is the gasket's ability to conform to imperfect or damaged flange surfaces. The corrugated design allows the gasket to fill gaps and create a seal even when the flange surface is not perfectly smooth. This feature is essential in industrial settings where flanges may not be in pristine condition.

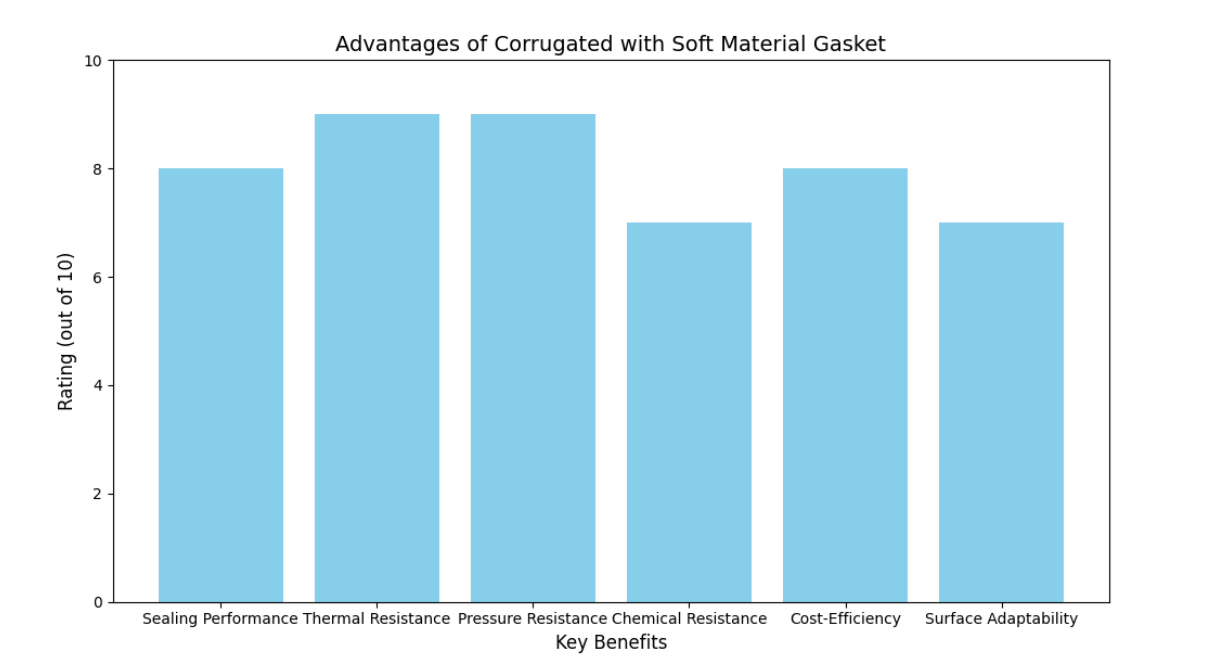

Benefit | Description | Importance in Application |
Enhanced Sealing Performance | Tight seals under fluctuating pressures and temperatures | Ensures a reliable and leak-proof seal in demanding environments |
Thermal and Pressure Resistance | Can withstand extreme conditions without compromising performance | Ideal for high-temperature and high-pressure systems |
Chemical Resistance | Resists corrosion and aggressive chemicals | Essential for applications in chemical processing |
Adaptability to Imperfect Surfaces | Conforms to uneven flange surfaces | Ensures a tight seal even with flange imperfections |
In the oil and gas industry, Corrugated with Soft Material Gaskets are used extensively in offshore platforms, pipeline systems, and high-pressure applications. The gasket's ability to handle fluctuating pressures and extreme temperatures makes it ideal for sealing in environments where safety and reliability are paramount.
In chemical and petrochemical plants, Corrugated with Soft Material Gaskets are commonly used to seal reactors, heat exchangers, and valves. These gaskets provide excellent resistance to corrosive chemicals, ensuring the integrity of the system and preventing leaks that could result in hazardous situations.
The Corrugated with Soft Material Gasket plays a crucial role in power generation facilities, particularly in turbines, boilers, and pressure vessels. The gasket's ability to withstand high temperatures and pressures makes it a vital component in ensuring the safety and efficiency of power generation systems.
These gaskets are particularly well-suited for systems that experience thermal cycling, such as heat exchangers. The combination of the corrugated core and soft material allows the gasket to handle thermal expansion and contraction without losing its sealing capabilities, making it ideal for high-temperature applications.
In the automotive and aerospace industries, Corrugated with Soft Material Gaskets are used in exhaust systems, pressure vessels, and other critical components. The gasket’s ability to perform under high pressure and temperature makes it a reliable sealing solution for demanding applications in these sectors.
The choice of metal for the core of the Corrugated with Soft Material Gasket is crucial to ensure it can withstand the application’s mechanical, thermal, and chemical stresses. Stainless steel, Inconel, and carbon steel are common choices. Stainless steel is highly corrosion-resistant, Inconel performs well at high temperatures, and carbon steel offers a cost-effective solution for moderate conditions.
The soft material used in the gasket also plays a vital role in sealing performance. Graphite is often used for its high-temperature resistance and ability to withstand aggressive chemicals. PTFE, on the other hand, provides excellent chemical resistance and is ideal for sealing in a wide range of environments.
Choosing the right combination of materials is essential for the gasket to perform optimally in its intended application. The materials selected for both the metal core and soft facing should be chosen based on the temperature, pressure, and chemical exposure the gasket will experience.
When compared to spiral wound gaskets, Corrugated with Soft Material Gaskets offer superior flexibility and are better suited for applications involving uneven flange surfaces. While spiral wound gaskets are ideal for high-pressure systems, corrugated gaskets excel in adaptability and sealing performance under fluctuating pressures and temperatures.
Kammprofile gaskets are similar to corrugated gaskets in that they combine a metal core with a soft facing. However, Corrugated with Soft Material Gaskets are typically more cost-effective and can handle more extreme temperature and pressure variations. Kammprofile gaskets are often preferred in situations requiring tighter tolerances and higher compressive forces.
Corrugated gaskets are generally more affordable than Kammprofile and spiral wound gaskets while still offering excellent sealing performance. Their ability to withstand harsh conditions with less frequent replacement makes them a more cost-effective choice in the long run.
Gasket Type | Sealing Performance | Durability | Flexibility | Best Use Case |
Corrugated with Soft Material Gasket | Excellent sealing under varying pressure | High durability under extreme conditions | Highly flexible, adapts to uneven surfaces | Chemical processing, heat exchangers |
Spiral Wound Gasket | Good performance under high pressure | Moderate durability | Less flexible, requires more compression | General industrial use, pipelines |
Kammprofile Gasket | Superior sealing under high pressure and temperature | Long-lasting, very durable | Moderate flexibility | Chemical, petrochemical industries |
Proper installation is key to achieving a reliable seal. Ensuring that the gasket is properly aligned and compressed will prevent leaks. Use a calibrated torque wrench to avoid over-tightening or under-tightening, which could compromise the seal.
One common mistake when installing Corrugated with Soft Material Gaskets is not ensuring that the flange surfaces are clean and smooth. Dirt, debris, or imperfections can prevent the gasket from forming a tight seal, leading to leaks.
Regular maintenance and inspection are necessary to ensure the gasket remains in good condition. Check for signs of wear, such as deformation, cracking, or chemical degradation. Re-tighten bolts as necessary to maintain the gasket's seal.
The Corrugated with Soft Material Gasket provides superior sealing performance, resistance to extreme conditions, and adaptability to imperfect surfaces. It is a reliable and cost-effective solution for industries such as oil and gas, chemical processing, and power generation. Ningbo Dongheng Sealing Co., Ltd. offers high-quality gaskets, ensuring durability and efficiency in critical applications. When choosing a gasket, consider the specific environmental and operational needs to maximize long-term sealing performance.
A: A Corrugated with Soft Material Gasket is a sealing component made of a metal core with a corrugated design, combined with a soft material like graphite or PTFE to enhance its sealing performance.
A: The gasket compresses under pressure, using the flexibility of the corrugated metal core and the soft material to form a tight, reliable seal even under extreme temperatures and pressures.
A: These gaskets offer superior sealing performance, chemical resistance, and adaptability to uneven flange surfaces. They are ideal for high-temperature, high-pressure environments.
A: Corrugated with Soft Material Gaskets are commonly used in industries such as oil and gas, chemical processing, power generation, and automotive, providing reliable seals in harsh environments.
A: These gaskets offer better flexibility and durability compared to others, making them ideal for sealing in demanding environments where temperature fluctuations, pressure changes, and chemical exposure are common.
