In industrial systems, flange sealing is crucial for maintaining the integrity of the system. A poor seal can lead to leaks, operational failures, and safety hazards. Two popular types of gaskets used for flange sealing are Double Jacketed Gaskets and Corrugated Gaskets. In this article, we will compare these two gasket types, explore their features, applications, and help you determine which one is better for your specific needs.

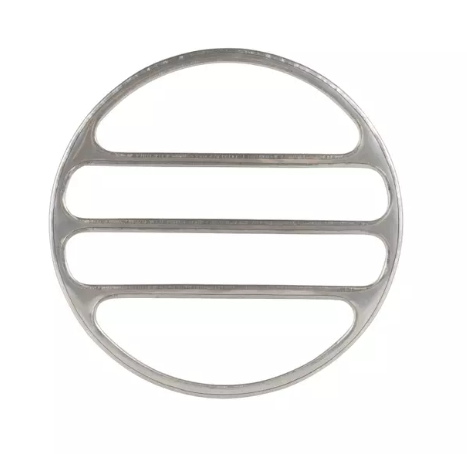

A Double Jacketed Gasket is a composite gasket consisting of a soft, compressible filler material, such as graphite or PTFE, completely enclosed in a metallic jacket. The jacket acts as a protective barrier, while the soft filler ensures adaptability to surface irregularities and provides effective sealing.
Double Jacketed Gaskets feature a metal outer jacket that fully encapsulates the filler material. This design allows the gasket to handle high-pressure and high-temperature applications without degrading over time. The metal jacket provides strength and durability, while the filler compensates for minor imperfections in the flange surfaces.
Compared to single jacketed gaskets, the double jacketed design offers enhanced sealing properties. The full encapsulation of the filler material reduces the risk of blowouts, making it more reliable for extreme conditions. Additionally, it provides better protection against corrosion, extending the gasket's lifespan.
In the oil and gas industry, particularly in offshore platforms and pipeline systems, Double Jacketed Gaskets are essential for maintaining leak-proof seals under extreme high-pressure conditions. These gaskets provide metal-to-metal sealing, which is highly reliable in environments where safety and operational integrity are non-negotiable. Their durability ensures that hazardous materials do not leak, protecting both equipment and the environment.
In chemical and petrochemical industries, Double Jacketed Gaskets are commonly used in reactors, heat exchangers, and valves, where aggressive chemicals and high temperatures are prevalent. These gaskets offer excellent resistance to chemical attacks, making them ideal for systems exposed to harsh media. The dual jacket design protects the filler material, ensuring that sealing efficiency remains intact even in challenging conditions.
In power generation, Double Jacketed Gaskets are deployed in turbines, boilers, and pressure vessels to maintain effective seals in environments subjected to both high pressure and extreme temperatures. The ability of these gaskets to endure these harsh conditions ensures that vital equipment remains sealed under stress, preventing leaks that could disrupt energy production and cause system failures. This durability is particularly important for ensuring the safety and reliability of energy plants.
Double Jacketed Gaskets are commonly constructed using materials like stainless steel, Inconel, and graphite. The choice of material varies based on the specific needs of the application, such as corrosion resistance, temperature tolerance, and chemical compatibility. Stainless steel is widely used for its excellent corrosion resistance, while Inconel is selected for high-temperature environments. Graphite fillers offer outstanding sealing performance in high-pressure and chemically aggressive applications.
The selection of materials for both the jacket and filler plays a crucial role in the performance and lifespan of the gasket. For example, Inconel jackets are specifically suited for high-temperature operations due to their ability to withstand extreme heat without degradation. Stainless steel, on the other hand, is often preferred for general industrial applications where corrosion resistance is a priority. Meanwhile, the filler material, like graphite or PTFE, contributes to the gasket’s flexibility, compressibility, and ability to handle pressure and temperature fluctuations. Thus, material selection directly influences the gasket's sealing integrity, reliability, and long-term durability.
A Corrugated Gasket is a specialized type of gasket featuring a metal core with a wavy, corrugated profile. This design enhances the gasket's flexibility, allowing it to effectively seal uneven surfaces and absorb the effects of thermal expansion and contraction. The structure of the gasket ensures that it can accommodate fluctuations in both temperature and pressure, making it ideal for dynamic environments where traditional flat gaskets may not perform as well.
The corrugated structure of the gasket offers superior resilience by enabling it to withstand thermal cycling and handle pressure fluctuations. Typically, soft materials like PTFE or graphite are placed between the metal layers, enhancing the gasket's sealing properties. This combination of flexible and durable materials ensures that the gasket can maintain a tight, effective seal under varying conditions, even in harsh industrial environments.
Compared to traditional flat gaskets, Corrugated Gaskets offer several key advantages. Their unique design provides enhanced flexibility, making them better suited for high-temperature and high-pressure applications. Additionally, their ability to compensate for flange imperfections—such as uneven surfaces—ensures a more reliable and effective seal. This feature makes them particularly beneficial in industries that require sealing in challenging environments, including those subject to extreme thermal cycling and fluctuating pressures.
In heat exchangers, Corrugated Gaskets perform exceptionally well due to their ability to handle temperature changes and pressure fluctuations. The corrugated structure allows them to adapt to the dynamic environment inside the heat exchanger.
For exhaust systems and pressure vessels in automotive and aerospace industries, Corrugated Gaskets offer durability and resistance to thermal cycling. Their flexibility makes them ideal for sealing under extreme conditions.
Corrugated Gaskets are well-suited for high-temperature sealing. The materials used, such as graphite and stainless steel, allow the gasket to maintain a secure seal in environments exceeding 500°C (932°F).
Corrugated Gaskets are usually made from stainless steel, PTFE, or graphite. The metal core provides strength, while the soft filler materials ensure a tight seal by compensating for surface imperfections and providing thermal resistance.
The flexible nature of the corrugated design allows these gaskets to perform well in challenging environments where other gaskets might fail. This makes them ideal for industries that require sealing in fluctuating temperature and pressure conditions.
When it comes to sealing performance, Double Jacketed Gaskets excel in providing a robust metal-to-metal seal, making them ideal for high-pressure applications. In contrast, Corrugated Gaskets offer superior flexibility and resilience, making them suitable for environments with fluctuating pressures and temperatures. Double Jacketed Gaskets tend to be the better choice when the sealing environment involves high pressure and constant load.
In terms of durability, Double Jacketed Gaskets provide better protection against environmental factors like chemical exposure and mechanical stress. However, Corrugated Gaskets offer better resilience to thermal cycling and pressure fluctuations, making them ideal for applications that involve frequent temperature changes.
While Double Jacketed Gaskets tend to have a higher upfront cost, their durability and reliability often lead to long-term savings due to reduced maintenance and fewer replacements. Corrugated Gaskets, on the other hand, may be more cost-effective in applications where high flexibility and thermal resistance are needed.

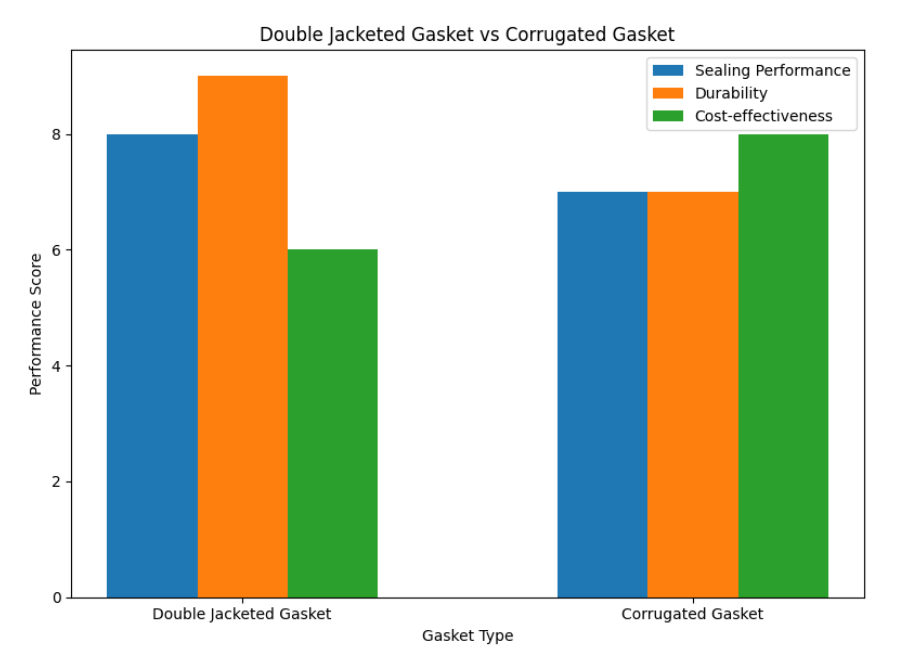

Feature | Double Jacketed Gasket | Corrugated Gasket |
Sealing Performance | Metal-to-metal seal, ideal for high-pressure environments | Flexible, adapts to uneven surfaces, ideal for high-temperature environments |
Durability | Excellent resistance to chemical exposure and mechanical stress | Great resilience to thermal cycling and pressure fluctuations |
Cost-effectiveness | Higher initial cost, but long-term savings from durability | Generally more cost-effective for applications requiring flexibility |
Temperature Resistance | High-temperature resistance, especially with materials like Inconel | Excellent performance in high-temperature environments (up to 500°C) |
Pressure Resistance | Best for high-pressure environments | Suitable for medium-pressure applications |
Both gaskets perform well in extreme temperature and pressure conditions, but Double Jacketed Gaskets typically provide better performance in ultra-high-pressure applications, especially when the gasket needs to maintain integrity under constant mechanical stress.
Double Jacketed Gaskets are better suited for environments where chemical resistance is a priority, as the metal jacket protects the filler from aggressive chemicals. Corrugated Gaskets, while effective in many applications, may not offer the same level of protection in highly corrosive environments.
For high-pressure systems in the oil and gas or power generation sectors, Double Jacketed Gaskets are the preferred choice. For applications involving high thermal cycling and surface irregularities, such as in heat exchangers or automotive exhaust systems, Corrugated Gaskets are ideal.
● Oil & Gas: Double Jacketed Gaskets provide superior sealing under high pressures in offshore platforms.
● Chemical & Petrochemical: Double Jacketed Gaskets offer the necessary protection against corrosive chemicals.
● Heat Exchangers: Corrugated Gaskets excel in thermal cycling and irregular surfaces.
Ensuring Proper Alignment and Compression
For both Double Jacketed Gaskets and Corrugated Gaskets, it’s crucial to ensure proper alignment and compression during installation. Misalignment can lead to gasket failure, so it is important to follow the manufacturer’s installation instructions closely.
Avoiding Common Installation Pitfalls
A common mistake when installing gaskets is over-tightening or under-tightening bolts. This can cause either gasket deformation or inadequate sealing. Always use a calibrated torque wrench and follow the recommended torque values.
Inspection and Re-tightening
Regular inspection is key to maintaining gasket performance. Both types of gaskets may require re-tightening after initial operation to ensure that the seal remains intact. Periodic checks should be conducted to detect any wear or damage.
When to Replace
If the gasket shows signs of deformation, cracking, or erosion, it is time to replace it. Gaskets exposed to harsh chemicals or extreme temperatures may wear faster and need more frequent replacements.
In conclusion, Double Jacketed Gaskets and Corrugated Gaskets each have their own strengths and are suited for different applications. Double Jacketed Gaskets are ideal for high-pressure and chemically aggressive environments, providing long-term durability and sealing performance. On the other hand, Corrugated Gaskets offer flexibility, thermal cycling resistance, and are suitable for sealing uneven surfaces. Ultimately, the right choice depends on the specific conditions of your application. By carefully considering temperature, pressure, and material compatibility, you can choose the best gasket for your flange sealing needs, ensuring reliable, leak-proof performance. Ningbo Dongheng Sealing Co., Ltd. offers a range of high-quality sealing solutions, ensuring optimal performance in demanding industrial environments.
A: A Double Jacketed Gasket is a composite gasket consisting of a soft filler material surrounded by two metal layers. It offers enhanced sealing performance, especially in high-pressure and high-temperature environments.
A: Double Jacketed Gaskets are ideal for applications involving high pressure, extreme temperatures, and chemical exposure, such as in the oil & gas and power generation industries.
A: Double Jacketed Gaskets are typically made from materials like stainless steel, Inconel, and graphite, selected based on the application’s temperature, pressure, and chemical compatibility.
A: While both gaskets provide excellent sealing, Corrugated Gaskets are more flexible and better suited for thermal cycling and uneven surfaces. In contrast, Double Jacketed Gaskets excel in high-pressure, high-temperature conditions.
A: Yes, Double Jacketed Gaskets may have a higher initial cost, but their durability and reliability often result in long-term savings due to reduced maintenance and fewer replacements.
