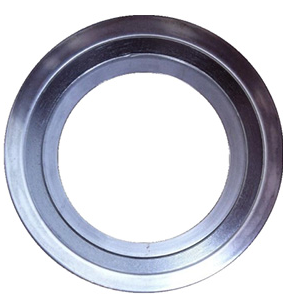

Have you ever wondered how industries maintain leak-proof seals under extreme conditions? Spiral wound gaskets are the unsung heroes of high-pressure environments. These specialized gaskets, first introduced in 1912, have evolved into essential components in various industries.
Known for their durability and ability to withstand high temperatures, spiral wound gaskets are crucial for preventing leaks in pipelines and equipment. In this post, we’ll explore what spiral wound gaskets are used for and why they are vital in modern industrial applications.
Understanding the components of a spiral wound gasket helps appreciate its effectiveness in sealing applications. Each part plays a crucial role in ensuring durability and performance under extreme conditions.
The outer ring is typically made from carbon steel or stainless steel. Its primary function is to center the gasket within the flange, ensuring proper alignment during installation. This centering feature is vital for preventing blowouts, which can occur if the gasket is misaligned under pressure. The outer ring also acts as a compression stop, providing additional support to the overall structure.
The inner ring serves a critical purpose: it prevents the winding from buckling inside the pipe. When the gasket is compressed, the inner ring maintains the integrity of the windings, reducing the risk of pieces being sucked into the pipeline. This is particularly important in preventing what’s known as a “bird’s nest” scenario, where the winding material tangles and disrupts flow. Typically, the inner ring is made from the same material as the winding strip to ensure compatibility and enhance performance.
The winding element is the heart of the spiral wound gasket. It consists of a spirally wound metal strip that provides strength and flexibility. Common materials for the winding strip include stainless steel, Inconel, and Hastelloy. These materials are chosen for their high-temperature and corrosion-resistant properties.
One notable design feature is the “Chevron V” shape of the windings. This shape enhances the gasket's ability to seal by allowing it to conform better to the flange surfaces. The winding’s structure not only helps in maintaining a tight seal but also aids in recovering its shape after compression.
Filler materials play a significant role in the sealing properties of spiral wound gaskets. The most common types include:
● Graphite: Known for its excellent thermal and chemical resistance, making it ideal for high-temperature applications.
● PTFE (Polytetrafluoroethylene): Offers outstanding chemical resistance, suitable for corrosive environments.
● Mica: Excellent for high-temperature applications, providing good electrical insulation.
● Ceramic: Used for extreme heat applications, combining durability with effective sealing.
The choice of filler material is crucial as it impacts the gasket's compatibility with various media. Proper selection ensures optimal performance in specific applications.
Filler Material | Properties | Ideal Use |
Graphite | High thermal resistance | Oil and gas industry |
PTFE | Chemical resistance | Chemical processing |
Mica | High-temperature resistance | Electrical insulation |
Ceramic | Extreme heat resistance | Petrochemical applications |
Each component of the spiral wound gasket works in harmony to create a reliable sealing solution. By understanding these elements, we can better appreciate the role of spiral wound gaskets in various industrial applications.
Spiral wound gaskets are versatile sealing solutions used across various industries. Their unique design allows them to perform well in demanding environments, making them essential for many applications.
In the oil and gas sector, spiral wound gaskets are vital for ensuring leak-free operations. They are commonly used in:
● Pipelines: Sealing joints to prevent leaks in transportation systems.
● Valves: Ensuring tight seals to manage high-pressure fluids.
● Flanges: Providing reliable seals in connecting equipment.
High-pressure environments are standard in this industry, so the gasket's ability to withstand extreme conditions is crucial. Additionally, color codes help identify materials quickly; for instance, yellow indicates 304 stainless steel, ensuring proper selection for specific applications.
In chemical processing, spiral wound gaskets play a significant role in maintaining system integrity. They are often found in:
● Reactors: Sealing to prevent chemical leaks.
● Heat Exchangers: Ensuring efficient heat transfer without leaks.
● Distillation Columns: Maintaining pressure and preventing contamination.
Chemical compatibility is essential here, as different processes may involve aggressive substances. Choosing the right gasket material can prevent failures and enhance safety.
The power generation sector relies on spiral wound gaskets in various applications, including:
● Turbines: Sealing steam and gas paths to maximize efficiency.
● Boilers: Preventing leaks in high-pressure steam systems.
● Heat Exchangers: Ensuring effective thermal transfer while minimizing leaks.
These gaskets must withstand high temperatures and pressures, making their selection critical for operational reliability.
In pharmaceuticals, hygiene is paramount. Spiral wound gaskets help maintain cleanliness and prevent contamination in:
● Production Equipment: Sealing machinery to ensure sterile conditions.
● Storage Tanks: Preventing leaks that could compromise product quality.
Using gaskets made from non-toxic materials is essential to meet industry standards and ensure product safety.
Spiral wound gaskets also find applications in various other sectors, such as:
● Mining: Sealing equipment exposed to harsh conditions.
● Pulp and Paper: Ensuring leak-proof seals in processing equipment.
These industries benefit from the durability and reliability of spiral wound gaskets, which help maintain operational efficiency.
Some applications require specific design considerations. For instance, Style HE gaskets are designed for heat exchangers, providing enhanced sealing capabilities. They offer:
● Improved Performance: Better sealing under fluctuating temperatures and pressures.
● Custom Designs: Tailored to fit specific equipment requirements.
Industry | Typical Applications | Key Considerations |
Oil and Gas | Pipelines, valves, flanges | High pressure, material identification |
Chemical | Reactors, heat exchangers, distillation columns | Chemical compatibility |
Power Generation | Turbines, boilers, heat exchangers | High temperature and pressure tolerance |
Pharmaceutical | Production equipment, storage tanks | Hygiene and non-toxic materials |
Other Industries | Mining, pulp and paper | Durability in harsh environments |
Spiral wound gaskets are indispensable across these sectors, ensuring safety and efficiency in operations. Their adaptability and reliability make them a go-to choice for engineers and maintenance teams alike.
Spiral wound gaskets are a popular choice in various industries due to their remarkable benefits. Their unique design and material composition make them highly effective in demanding applications.
One of the standout features of spiral wound gaskets is their excellent sealing performance. They can adapt to imperfections in flange surfaces, ensuring a tight seal even in less-than-ideal conditions. This adaptability is crucial, as it minimizes the risk of leaks.
When compared to other gasket types, such as Kammprofile and Ring Type Joint (RTJ) gaskets, spiral wound gaskets often outperform in terms of flexibility and sealing capability. While Kammprofile gaskets provide a good seal, they may not handle flange irregularities as effectively. RTJ gaskets, on the other hand, require precise machining for optimal performance, which may not always be feasible.
Spiral wound gaskets excel in high-temperature and high-pressure environments. They can handle extreme conditions, making them suitable for a wide range of applications. Below is a table summarizing the maximum limits for different materials used in spiral wound gaskets:
Material | Max Temperature (°C) | Max Pressure (bar) |
Stainless Steel | 550 | 100 |
Inconel | 800 | 150 |
Hastelloy | 900 | 200 |
These limits indicate how versatile spiral wound gaskets can be, catering to various industrial needs.
In harsh environments, corrosion and chemical resistance are critical. Spiral wound gaskets are designed to withstand aggressive substances, ensuring long-lasting performance. The use of non-asbestos fillers enhances safety, particularly in industries where exposure to harmful materials is a concern. This feature not only protects workers but also ensures compliance with safety regulations.
Durability is another significant advantage of spiral wound gaskets. When installed correctly and made from the right materials, these gaskets can have a long lifespan. Proper installation techniques help prevent common issues, such as the “bird’s nest” phenomenon, where the winding material becomes tangled or dislodged.
By choosing the right materials and following installation best practices, users can maximize the lifespan of their spiral wound gaskets. This not only reduces maintenance costs but also enhances the overall reliability of the sealing solution.
Spiral wound gaskets offer a combination of performance, safety, and longevity that makes them an excellent choice for a variety of applications. Their ability to adapt to challenging conditions and resist wear makes them invaluable in demanding industrial settings.
Choosing the right spiral wound gasket is crucial for ensuring a reliable seal in your application. Several factors come into play when making this decision, and avoiding common mistakes can save you time and money.
When selecting a spiral wound gasket, keep these important factors in mind:
● Temperature and Pressure Ratings: First, determine the operating temperature and pressure of your system. Gaskets have specific limits, and exceeding these can lead to failure. Always refer to manufacturer specifications to ensure compatibility.
● Chemical Compatibility: Assess the process fluids that will come into contact with the gasket. Different materials offer varying levels of resistance to chemicals. For example, if your process involves corrosive substances, a gasket with appropriate fillers is essential.
● Flange Surface Finish and Dimensions: The surface finish of the flange affects how well the gasket seals. A smoother finish generally provides a better seal. Also, ensure the gasket dimensions match the flange size to avoid leaks.
● Bolt Load Availability: Understanding the available bolt load is critical. The gasket needs sufficient compression to create an effective seal. Insufficient load can lead to blowouts, while excessive load can cause damage.
Selecting a gasket is not just about picking one off the shelf. Here are some common pitfalls to avoid:
● Incorrect Gasket Selection: Choosing the wrong material or type of gasket can lead to leaks and system failures. Always match the gasket to the specific conditions of your application.
● Uneven Bolt Tightening: Uneven tightening of bolts can create gaps in the seal, leading to leaks. Use a torque wrench and follow a proper tightening sequence to ensure even compression.
● Reusing Old Gaskets: Reusing gaskets can compromise the seal. Even if they look fine, they may have lost their sealing properties. Always use new gaskets to ensure reliability.
● Over-Compression and Its Effects: Over-tightening can cause dishing, where the gasket deforms and loses its sealing ability. This can lead to premature failure. Always adhere to recommended torque values.
Factor | Consideration |
Temperature and Pressure Ratings | Check manufacturer specifications |
Chemical Compatibility | Match gasket material to process fluids |
Flange Surface Finish | Ensure a smooth finish for better sealing |
Bolt Load Availability | Ensure sufficient compression for effective sealing |
By carefully considering these factors and avoiding common mistakes, you can select the right spiral wound gasket for your needs. This attention to detail will help ensure a long-lasting and effective seal in your application.
Proper installation of spiral wound gaskets is essential for achieving a reliable seal and preventing leaks. Following these guidelines will help ensure optimal performance in your applications.
Before installing a spiral wound gasket, it's crucial to prepare the flange surfaces properly.
● Cleanliness: Ensure that both flange surfaces are clean and free from debris, oil, or old gasket material. Contaminants can hinder the gasket's ability to seal effectively.
● Alignment: Flange surfaces must be aligned correctly. Misalignment can lead to uneven compression and potential leaks. Check for any warping or damage on the flanges before installation.
Here’s a step-by-step guide to installing your spiral wound gasket correctly:
1. Inspect the Gasket: Before installation, check the gasket for any visible damage or defects.
2. Position the Gasket: Place the gasket carefully onto the flange surface, ensuring it is centered and properly aligned.
3. Install the Flange: Bring the two flanges together slowly, ensuring the gasket remains in place.
4. Tighten Bolts: Begin tightening the bolts in a crisscross pattern to distribute pressure evenly.
Important Note: Avoid using grease or adhesives on the gasket. These substances can interfere with the sealing properties and lead to gasket failure.
Torqueing is a critical step in ensuring a proper seal. Here are some recommendations:
● Use a Torque Wrench: Always use a calibrated torque wrench to achieve the correct bolt load. This prevents over-tightening, which can damage the gasket.
● Recommended Patterns and Values: Follow a specific tightening pattern, such as a star or crisscross method. This helps distribute the force evenly across the gasket. Recommended torque values will vary based on the gasket material and application, so always refer to manufacturer guidelines.
Bolt Size | Torque Value (Nm) | Tightening Pattern |
M10 | 20 | Crisscross |
M12 | 40 | Star |
M16 | 80 | Crisscross |
● Retorquing: After the initial pressurization of the system, it’s important to retorque the bolts. This ensures that any settling or compression of the gasket is accounted for, maintaining a tight seal.
By following these installation guidelines, you can maximize the effectiveness of your spiral wound gasket and ensure a reliable, leak-free operation in your systems.
Spiral wound gaskets are essential for various industrial applications. Their versatility ensures effective sealing in demanding environments. These gaskets play a crucial role in maintaining system integrity and safety. Investing in high-quality gaskets is vital for long-term reliability. At Dongheng Sealing, our products offer unique advantages, ensuring performance and durability. Trust us for your sealing needs and experience the value we provide.
A: A spiral wound gasket is a type of sealing solution made from layers of metal and filler material designed for high-pressure applications.
A: Spiral wound gaskets are commonly used in oil and gas, chemical processing, and power generation to ensure leak-free connections.
A: Spiral wound gaskets offer excellent sealing performance, high temperature resistance, and adaptability to flange imperfections.
A: The cost of a spiral wound gasket can vary based on material, size, and specific application requirements.
A: Proper installation involves cleaning the flange surfaces and using a torque wrench to tighten bolts evenly, ensuring an effective seal.
