Industrial leaks start small but spread fast. Flanges shift, bolts relax, and hot cycles change load. A single drip can halt production and raise risk.

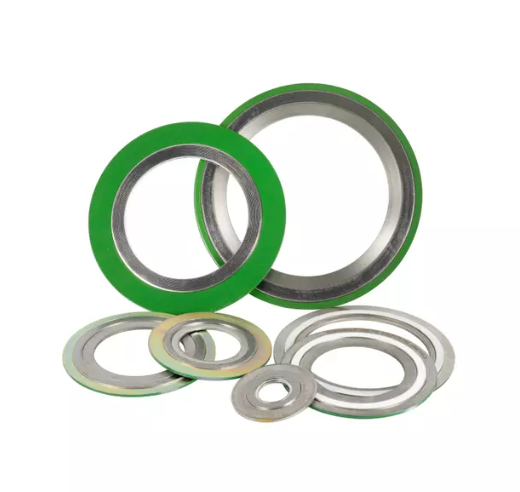

A Spiral Wound Gasket is built for tough joints. It combines metal strength and flexible filler, so it seals under pressure and rebounds after load changes. In this guide, you’ll learn gasket types, key materials, and how to match them to flanges, media, and operating limits.

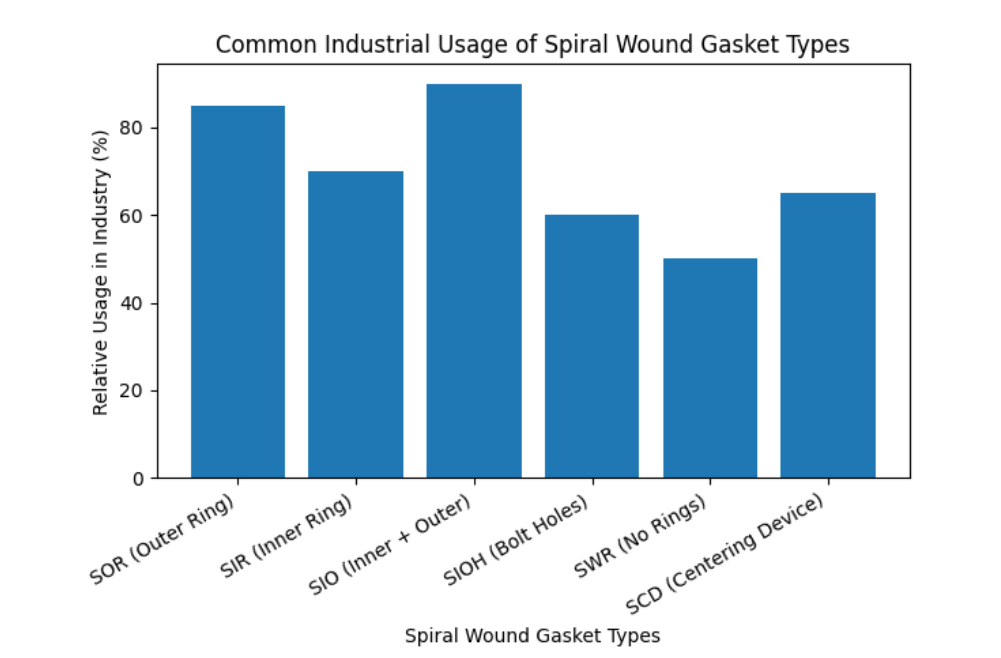

Spiral wound designs look similar at a glance. Their rings change the outcome. Rings guide alignment. They also manage compression behavior. In many plants, ring choice decides success.
Below, each type includes what it is best at. It also shows where it can fail.
SOR adds an outer ring around the winding. That ring acts as a centering guide. It helps installers place the gasket correctly. It also supports more even load transfer.
This type fits raised-face flanges in common piping. It also fits many general service joints. When flanges are opened often, it reduces placement mistakes. It can also reduce edge damage during assembly.
Choose SOR when alignment risk is real. This includes large flanges. It also includes tight work areas. The outer ring reduces slip during bolt snugging. That helps they keep the gasket centered.
SOR is not a cure for poor flange faces. If surfaces are gouged, leaks can still occur. If bolts are uneven, the seal still suffers.
SIR adds an inner ring at the bore. This ring supports the winding at the inside diameter. It reduces inward buckling under high bolt loads. It also reduces filler extrusion into the pipe.
In higher pressure classes, inward collapse can happen. When it happens, pieces can enter the bore. That debris can move downstream. It may collect at valves. It may also wrap around rotating parts. That can create serious maintenance events.
SIR is a strong choice for high stress joints. It also fits heat exchanger nozzles. It protects the gasket element from bore turbulence. It also helps prevent erosion at the inside edge.
If your service sees high bolt loads, favor an inner ring. If your media is abrasive, it also helps. If you run frequent thermal cycles, it adds stability.
SIO combines both rings. It centers well and resists buckling. It is often the safest default for demanding service. It also performs well when a joint sees repeated cycling.
Use SIO in critical joints. This includes high pressure steam. It includes aggressive chemical service. It also includes joints where a leak is unacceptable. The dual rings help maintain gasket geometry under load.
SIO also reduces installation variability. Even skilled crews can face misalignment risk. Dual rings add mechanical guidance. They also help keep compression more uniform.
SIO may cost more than ringless designs. Yet it often reduces repeat work. It can also reduce unplanned shutdown risk. For many plants, that trade is easy.
SIOH adds bolt holes in the outer ring. This allows exact positioning on the bolt circle. It prevents rotation during assembly. It also supports repeatable alignment.
This helps in pressure vessels and controlled assemblies. It also helps when QA requires verified placement. In some units, joints are opened under procedures. Bolt-hole alignment can reduce assembly time there.
SIOH can also reduce rework from shifted gaskets. If the crew must stage bolts first, it helps. If the joint is vertical, it also helps. Gravity can pull a gasket off center. Bolt holes reduce that movement.
This design is not required everywhere. Use it where positioning drives reliability. Use it when repeated removal is expected.
SWR is the spiral element without rings. It relies on the flange design for location and compression. It can work well in grooved joints. It can also work where a recess centers it.
SWR can be cost-effective. It also offers flexibility in some legacy flanges. Yet it carries higher assembly risk. Mis-centering can occur. Uneven compression can also occur.
Use SWR only when the joint controls location. Confirm the gasket cannot slide during tightening. Confirm the flange provides stable compression limits.
If those checks fail, SWR becomes expensive. A leak can force a shutdown. A small saving can vanish fast.
SCD uses an added centering feature. It may be a guide ring style. Its purpose is fast, correct placement. This matters during turnarounds. It also matters in high hazard zones.
When time is tight, crews move fast. Misalignment risk increases. A centering device reduces that risk. It also helps new crews. It supports consistent results across shifts.
SCD also helps where access is limited. If the flange is hard to see, they may struggle. Centering features reduce trial and error.
Use SCD where repeat leaks have occurred. Use it where assembly speed is critical. It is a reliability tool, not just a convenience.
Type | Rings / Features | Best Fit | Main Value | Main Risk If Misused |
SOR | Outer ring | Raised-face piping flanges | Centering, load control | Still sensitive to poor bolt pattern |
SIR | Inner ring | High load, high class, bore risk | Anti-buckling, bore protection | Needs correct size and ID match |
SIO | Inner + outer rings | Critical service | Max stability and repeatability | Higher cost than minimal designs |
SIOH | Dual rings + bolt holes | Vessels, controlled assemblies | Precise alignment | Unneeded complexity in simple joints |
SWR | No rings | Grooved or recessed flanges | Cost and flexibility | High mis-centering and blowout risk |
SCD | Centering device | Turnarounds, hazard zones | Faster, accurate placement | Wrong fit if flange is nonstandard |
A Spiral Wound Gasket is only as good as its materials. You choose two core parts. One is the winding metal. The other is the filler. Rings also matter, but the seal comes from metal and filler.
Think in three filters. First, corrosion risk. Second, temperature range. Third, mechanical cycling and vibration. If you skip one, you risk early failure.
Stainless steels are common choices. SS304 is widely used for general service. It can fit many water and mild chemical systems. SS316 adds better corrosion resistance. It often fits chloride exposure better.
Nickel alloys and titanium cover harsher service. They can handle stronger media. They also fit high temperature oxidation resistance needs. Yet they cost more and need careful sourcing.
A practical approach works well. Start with process media and corrosion data. Then select the lowest risk metal. Do not default on habit alone. Plant history can mislead.
If a line had repeated leaks, review corrosion first. Metal loss can reduce gasket stress. It can also roughen flange faces. That increases leak risk.
Graphite filler fits high temperature service. It also handles steam well. It offers good recovery under cycling. Many plants use it for boilers and steam lines.
PTFE filler fits aggressive chemical service. It is useful for strong acids and solvents. It also suits cleanliness-sensitive systems. Yet PTFE has temperature limits. It can creep under sustained load. That can reduce sealing stress over time.
Mica filler fits very high temperature environments. It can handle heat that challenges other fillers. It is often used where fire resistance is needed. It can also fit severe thermal exposure.
When you choose filler, think beyond peak temperature. Think about cycling. Think about pressure swings. Think about bolt relaxation. Filler behavior under time matters.
Use a simple workflow. First, identify the media state. Is it liquid, vapor, or two-phase. Next, confirm corrosion risk. Then confirm temperature range. After that, confirm pressure class and bolt load.
Finally, choose ring configuration. Inner rings reduce extrusion. Outer rings reduce mis-centering. Dual rings add stability when cycling is frequent.
Standardization prevents expensive mismatches. A Spiral Wound Gasket may look correct. Yet wrong thickness or density can fail quickly. Standards also help procurement define acceptable quality.
ASME B16.20 covers metallic gaskets for flanges. It defines dimensions and tolerances. It also defines material marking practices. For many sites, it is the baseline requirement.
From an operations view, “compliant” should mean predictable fit. It should also mean consistent winding density. It should include correct ring dimensions. It should also include clear markings.
During procurement, require traceable materials. Require clear marking. Require verification of dimensions. These steps reduce field surprises.
Pressure class links to bolt load and gasket stress. Higher class flanges can create high seating stress. That can damage the sealing element. It can also buckle windings without an inner ring.
As pressure class increases, stability needs rise. Inner rings become more important. Outer rings also help maintain load distribution. Dual rings often make sense in high class service.
Do not select based on pressure class alone. Temperature and cycling also matter. Media can also change filler selection. Use pressure class as one input, not the full answer.
A spiral wound gasket should carry markings. These should identify the manufacturer, standard, size, and class. They should also indicate winding and filler materials.
Color codes can support fast field checks. They can reduce wrong installs during outages. Yet do not rely on color alone. Lighting and wear can mislead. Confirm the markings every time.
A good practice is simple. Log gasket material for each joint class. Standardize to reduce variation. Then train crews on the markings used at your site.
Spiral wound gaskets show their value in harsh service. They handle load variation better than many soft gaskets. They also tolerate flange movement better than rigid metal rings.
These units see heat, pressure, and cycling. They also see varied chemicals. Flanged joints are everywhere. A leak can create fire risk. It can also trigger shutdown protocols.
A Spiral Wound Gasket fits this mix because it balances strength and recovery. It can seat well under high bolt loads. It can also maintain seal as loads relax. That is important during thermal cycles.
Many services also face corrosion risk. Material pairing becomes critical there. A wrong filler can degrade. A wrong metal can corrode. Both can create leak paths.
Steam service is demanding. It combines high temperature and cycling. Boiler startups create rapid expansion. Shutdowns create contraction. Joint loads move with those changes.
Graphite-filled spiral wound gaskets often perform well here. They maintain sealing under heat. They also recover after load changes. Inner rings can help prevent buckling in high stress joints.
Heat exchangers add another challenge. They may see vibration and differential expansion. A spiral wound gasket can absorb movement. It can also seal minor surface irregularities.
Chemical units need compatibility first. A gasket may handle pressure and temperature. Yet it can still fail from chemical attack. Swelling, embrittlement, or creep can occur.
PTFE fillers often fit harsh chemical exposure. Yet temperature and load limits still apply. For hotter chemical systems, graphite or other fillers may be better. Metal choice must also match corrosion risk.
A strong selection process reduces repeat leaks. It also reduces maintenance labor. In chemical service, the wrong gasket can fail quickly. That failure can trigger safety reporting.
Some plants use flanged penetrations for instrument access. Test chambers and enclosures may route cables through flanged ports. In those cases, sealing at the flange still matters.
For RF cable feedthrough assemblies, the key risk is leakage around the penetration flange. The cable itself is not sealed by the gasket. The gasket seals the flange faces. When pressure or vacuum is present, seal integrity matters.
A spiral wound gasket can be used on such flanged joints when conditions demand it. Choose materials that match the environment inside the enclosure. Consider temperature and chemical exposure near the port. Also consider vibration from nearby equipment.
The same rules apply. Match flange type, load, and media. Ensure alignment and torque control. A cable penetration leak can ruin test results. It can also affect safety systems in some contexts.
Selection is easier when it is systematic. The steps below fit most plants. They also fit both new builds and replacements.
List normal and worst-case conditions. Include startup and upset cases. Thermal cycling matters as much as peak temperature. Pressure swings matter as much as peak pressure.
If cycling is frequent, prioritize recovery. Spiral wound designs help here. If vibration is present, stable ring designs help. If bolt loads are high, inner rings help.
Avoid under-spec selection based on normal conditions only. Upset cases often cause first failures. Avoid over-spec selection without reason. It can raise cost and lead times.
Confirm flange type first. Raised-face flanges often pair well with outer rings. Grooved designs may support ringless gaskets. Flat-face designs need careful sizing.
Inspect surface finish and damage. Spiral wound gaskets can tolerate small imperfections. They cannot fix deep grooves or warping. If flanges are not parallel, load will be uneven.
If alignment is hard in the field, use an outer ring. It helps they center the gasket. It also helps distribute load more evenly.
Use a simple rule set:
● If mis-centering risk exists, use an outer ring.
● If bolt loads are high, use an inner ring.
● If service is critical or cycling is heavy, use both.
● If the flange recess controls location, ringless may work.
If the joint has a history of leaks, upgrade stability. Dual rings often reduce variability. They also reduce failure modes tied to buckling and slip.
One mistake is ignoring chemical compatibility. A filler can degrade quietly. Another mistake is ignoring flange condition. A damaged face can cut the seal. A third mistake is buying only on price. In critical joints, “cheapest acceptable” is risky.
Also avoid mixing gasket styles across the same service. Standardization improves reliability. It also simplifies training. It reduces stocking complexity.
A Spiral Wound Gasket is a system decision, not a single product. Reliable sealing depends on matching gasket type, materials, flange condition, and load. Correct selection reduces leaks, downtime, and safety risk. Standardized choices and proper installation turn sealing into a controlled process.
Ningbo Dongheng sealing Co.,ltd provides spiral wound gasket solutions with stable performance, flexible material options, and consistent quality support, helping industrial users improve reliability and long-term sealing value.
A: A Spiral Wound Gasket seals flanges using metal windings and soft filler for pressure and heat resistance.
A: A Spiral Wound Gasket is used in oil, gas, power, and chemical piping systems.
A: A Spiral Wound Gasket offers better recovery, stability, and leak control under cycling loads.
A: Match flange type, pressure class, media, and temperature to the Spiral Wound Gasket design.
A: Common causes include wrong material choice, poor torque control, or flange damage.
