Sealing solutions are crucial for ensuring safety and efficiency in industrial systems. Non-asbestos gaskets provide a safer, more reliable alternative to traditional asbestos gaskets, offering significant benefits in safety and environmental impact.
In this article, we will discuss the advantages, composition, and key applications of non-asbestos gaskets, highlighting why they are the preferred choice for modern sealing solutions.
Non-asbestos gaskets are sealing materials designed to replace traditional asbestos-based gaskets, which were once widely used for their heat resistance and sealing capabilities. Asbestos gaskets, however, posed serious health risks, including lung cancer and respiratory diseases, leading to their phased-out use in many industries. In response to these health concerns, non-asbestos gaskets have been developed, combining safe and effective sealing materials that do not compromise on performance.
Non-asbestos gaskets typically consist of a mix of synthetic fibers, elastomers, and fillers that provide excellent sealing properties. These gaskets are designed to maintain integrity and performance under extreme temperatures, high pressures, and aggressive chemicals.
Unlike traditional asbestos gaskets, non-asbestos alternatives do not pose health risks associated with asbestos exposure. Asbestos fibers, when disturbed, release harmful dust particles that can lead to serious illnesses, especially in industrial environments where workers are constantly exposed. Non-asbestos gaskets, however, offer the same sealing reliability without these health hazards.
Additionally, non-asbestos gaskets often outperform their asbestos counterparts in terms of durability and flexibility. They are designed to handle fluctuations in temperature and pressure, making them suitable for a wide range of industrial applications.
The growing shift towards non-asbestos gaskets is driven by their enhanced safety, performance, and environmental benefits. Many industries are mandated by regulations to use asbestos-free materials, not only to protect workers but also to reduce environmental contamination. As non-asbestos gaskets are manufactured using sustainable, eco-friendly processes, they align with modern industrial standards that emphasize health and environmental compliance.
Property | Non-Asbestos Gaskets | Asbestos Gaskets |
Health Risks | Safe, no exposure to harmful fibers | Health hazards (asbestos exposure) |
Durability | Long lifespan, resistant to chemicals and heat | Limited durability, prone to breakdown |
Performance | High performance in extreme conditions | Lower performance in some cases |
Environmental Impact | Eco-friendly, safe for disposal | Harmful to the environment and workers |
Compliance | Meets modern safety regulations | Not compliant with modern health standards |
The composition of non-asbestos gaskets plays a crucial role in their performance. They are typically made from a combination of fibrous materials, elastomers, and binders that work together to create a strong, durable seal under various operating conditions.
Aramid fibers, commonly known as Kevlar, are one of the most widely used materials in non-asbestos gaskets. These fibers are strong, lightweight, and heat-resistant, providing excellent mechanical strength and durability in high-temperature applications. Aramid fibers can withstand up to 500°C and are resistant to many chemicals, making them ideal for use in petrochemical and automotive applications.
Glass fibers are another essential component of non-asbestos gaskets, particularly when high-temperature resistance is required. These fibers provide superior dimensional stability and strength, even in harsh conditions. Carbon fibers are also used for specific applications where high strength and low weight are essential. They offer excellent thermal conductivity and resistance to high pressures.
Elastomers such as nitrile rubber (NBR), ethylene propylene diene monomer (EPDM), and neoprene are commonly used in non-asbestos gaskets as binder materials. These binders give gaskets their flexibility, allowing them to conform to the flange surfaces and create an effective seal.
● Nitrile (NBR): Known for its resistance to oils, fuels, and chemicals, nitrile rubber is often used in automotive and oil industry gaskets.
● EPDM: Offers excellent resistance to heat, ozone, and weathering, making it ideal for outdoor applications and high-temperature environments.
● Neoprene: Known for its resistance to weathering, ozone, and many chemicals, neoprene is used in a variety of industrial gaskets, particularly in refrigeration and HVAC systems.
By combining different fibers and binders, manufacturers can create non-asbestos gaskets that are optimized for various industrial applications. For example, a combination of aramid fibers and nitrile rubber offers a high-performance gasket that excels in sealing applications where both heat resistance and chemical resistance are crucial. The appropriate fiber and binder selection ensures that the gasket maintains its integrity under varying pressure, temperature, and chemical conditions, preventing leaks and improving operational efficiency.
Component | Materials Used | Key Benefits |
Fibrous Materials | Aramid, Glass, Carbon Fibers | Heat resistance, chemical resistance, strength |
Binder Materials | Nitrile, EPDM, Neoprene | Flexibility, sealing efficiency, adaptability |
Combination of Fibers & Binders | Aramid + Nitrile, Glass + EPDM | Balances strength, flexibility, sealing integrity |

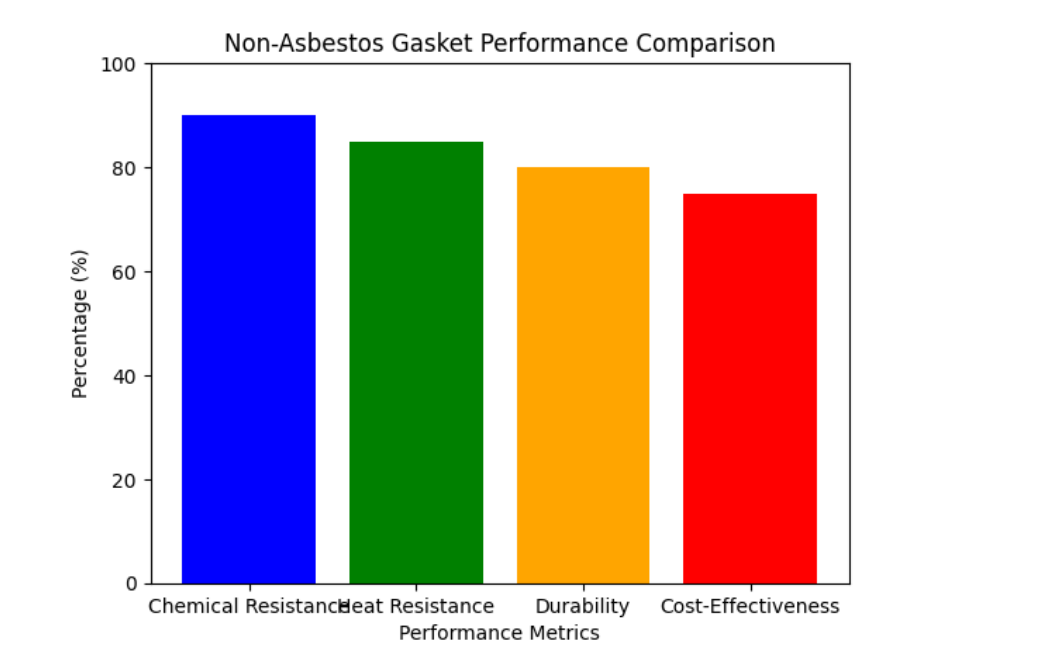

Non-asbestos gaskets offer several advantages over traditional asbestos-based gaskets, making them the preferred choice for many industrial applications.
The most significant advantage of non-asbestos gaskets is the elimination of health risks associated with asbestos. Asbestos fibers are known carcinogens that can cause serious respiratory diseases when inhaled. Non-asbestos gaskets, by contrast, are manufactured using safe materials, ensuring that workers are not exposed to harmful substances.
Moreover, the production and disposal of non-asbestos gaskets adhere to environmental standards, reducing the risk of contamination. This shift towards safer, more sustainable materials aligns with the growing global focus on environmental protection.
Non-asbestos gaskets are designed to provide reliable sealing performance even in the most demanding conditions. They can withstand high pressures, extreme temperatures, and aggressive chemicals without compromising their sealing integrity. This makes them suitable for a wide range of industries, including oil and gas, power generation, and chemical processing.
These gaskets are engineered to offer long-lasting performance, reducing the need for frequent replacements and minimizing system downtime. This reliability helps improve the efficiency of industrial operations and lowers overall maintenance costs.
While non-asbestos gaskets may have a higher initial cost compared to traditional asbestos gaskets, their long lifespan and reduced maintenance requirements make them a cost-effective solution in the long run. By offering superior durability and performance, non-asbestos gaskets help businesses reduce the total cost of ownership by minimizing repairs and replacements.
Non-asbestos gaskets are used in various industries that require safe, reliable sealing solutions. These gaskets are suitable for both high and low-pressure systems and are ideal for applications that involve aggressive chemicals, extreme temperatures, or both.
In the oil and gas industry, non-asbestos gaskets are crucial for sealing pipelines, valves, and storage tanks. These gaskets provide leak-free seals even under high pressures and temperatures, preventing hazardous spills and ensuring the safe transportation of oil and gas. Their chemical resistance ensures that they can handle the corrosive properties of oils, solvents, and gases commonly found in this industry.
Non-asbestos gaskets are widely used in chemical plants and refineries, where they provide reliable sealing for piping systems, reactors, and valves. These gaskets are resistant to a variety of chemicals, including acids, alkalis, and solvents, ensuring that processes remain safe and efficient. Their ability to maintain a tight seal under harsh conditions is essential for preventing leaks and ensuring the integrity of the system.
In power generation plants, non-asbestos gaskets are used in turbines, boilers, and heat exchangers. Their ability to withstand high temperatures and pressure cycles makes them ideal for these high-stakes applications. Similarly, in HVAC systems, these gaskets ensure airtight seals in ducts, compressors, and valves, contributing to energy efficiency and system reliability.
Automotive manufacturers rely on non-asbestos gaskets for engine sealing, exhaust systems, and fluid handling systems. These gaskets provide superior sealing performance, ensuring that engines remain efficient and emissions are minimized. In marine applications, non-asbestos gaskets are used to seal ship engines, fuel systems, and offshore equipment, offering reliable performance in harsh environments.
Selecting the right non-asbestos gasket depends on several factors, including the operating temperature, pressure, and chemical exposure. Understanding these factors ensures that the gasket will perform effectively and meet the specific requirements of the application.
When selecting a non-asbestos gasket, it is essential to match the gasket material with the pressure and temperature specifications of the application. Some gaskets are better suited for high-pressure systems, while others are optimized for high-temperature environments. Proper selection ensures that the gasket will maintain its sealing integrity under operating conditions.
Non-asbestos gaskets must be chosen based on the chemicals they will be exposed to during operation. Gaskets made with specific fibers and elastomers are more resistant to certain chemicals. Understanding the chemical environment is crucial in selecting the appropriate gasket material to prevent degradation or failure.
Industry standards and certifications, such as ISO and ASTM, are important when selecting non-asbestos gaskets. These certifications ensure that the gaskets meet quality and performance requirements, providing reliable sealing in critical applications.
The demand for non-asbestos gaskets is expected to grow as industries continue to prioritize safety, sustainability, and performance. Advancements in materials science will likely lead to the development of even more durable and cost-effective non-asbestos gaskets, making them the go-to choice for sealing applications across various sectors.
Non-asbestos gaskets offer a safe, reliable, and cost-effective sealing solution for industrial applications. Their superior chemical resistance and durability make them an ideal choice for industries needing efficient, leak-proof seals. By choosing non-asbestos gaskets, companies can improve safety, reduce environmental impact, and ensure system integrity.
In summary, non-asbestos gaskets outperform traditional asbestos gaskets in sealing performance, safety, and longevity. With non-asbestos gaskets, industries comply with safety standards while enhancing operational efficiency. Ningbo Dongheng Sealing Co., Ltd. offers high-quality non-asbestos sealing solutions that meet industry needs for reliable and safe sealing.
A: A Non-Asbestos Gasket is a sealing material made without asbestos. It is designed to provide safe and reliable sealing in industrial applications, offering excellent chemical and temperature resistance.
A: Non-Asbestos Gaskets are safer as they eliminate health risks associated with asbestos. They also provide comparable or better performance in sealing, durability, and environmental sustainability.
A: Non-Asbestos Gaskets have a long lifespan, with excellent resistance to chemicals, temperature variations, and mechanical stress. This durability helps reduce maintenance costs over time.
A: Yes, Non-Asbestos Gaskets are designed to withstand high temperatures. Depending on the material composition, they perform well in extreme heat environments.
A: When selecting a Non-Asbestos Gasket, consider factors like pressure, temperature, chemical exposure, and specific industry standards. This ensures optimal sealing performance and durability.
