Choosing a gasket might seem simple, but it directly impacts leakage risk and uptime. A poor choice could trigger unplanned shutdowns and raise emissions in regulated services. In this guide, we compare the Spiral Wound Gasket and Kammprofile gasket. We’ll explore their key differences, advantages, limitations, and best use cases. By the end, you’ll know how to select the right gasket based on your specific needs.
A Spiral Wound Gasket is built from alternating layers of metal strip and soft filler, commonly graphite or PTFE. The layers form a spiral like a record groove, and many designs include an outer centering ring to help alignment and to limit compression. Some designs also add an inner ring to support the winding and reduce buckling risk. A Kammprofile gasket uses a solid metal core that has machined serrations on both sides, plus a soft facing layer on each side, often graphite or PTFE. The solid core resists bending during handling and helps it keep consistent thickness, which can matter on large flanges or in sites where transport damage is common.
The Spiral Wound Gasket seals by compressing both the metal winding and the soft filler. Under bolt load, the filler flows into small surface irregularities and helps block leakage paths, while the metal winding supports the structure and helps recovery when load changes. The Kammprofile gasket seals in a more concentrated way. Its serrations focus gasket stress onto the facing layer, and the facing deforms into the grooves to create multiple concentric sealing lines. In simple terms, spiral wound designs share compression between metal and filler, while Kammprofile designs rely more on controlled facing deformation supported by a rigid core.
Thermal cycling stretches bolts and shifts flange geometry over time, and vibration can add small but frequent movement at the joint. A Spiral Wound Gasket typically offers strong recovery, which helps it tolerate moderate flange movement and pressure swings. Its layered structure can rebound after load changes, which is why it works well in many general piping and exchanger services. Kammprofile gaskets compress less overall, but they often retain sealing load more consistently because the solid core resists creep and deformation. That load retention can be valuable in harsh services where stability matters more than flexibility, especially when the joint sees repeated cycles and long run times between outages.
Both gasket types can handle high pressure and high temperature, yet their failure risks differ as stress rises. A Spiral Wound Gasket performs well across many standard flange joints, vessels, and heat exchangers, but it can become more vulnerable in extreme duty because windings can be damaged during handling, and higher seating stress raises buckling or crush risks if the design lacks proper ring support. Kammprofile gaskets often hold up better in very high pressure and temperature services because the solid core improves blowout resistance and keeps the gasket geometry stable under heavy bolt loads. They also tend to perform well where surface defects exist and where tight sealing is needed for emission control, though facing selection still controls chemical and temperature limits.
Installation quality often decides whether the joint stays tight after start-up. A Spiral Wound Gasket usually needs careful centering, controlled tightening increments, and even bolt loading to avoid local crush of filler or flange tilt. If the gasket is off-center, the effective sealing area can shrink and the windings may be exposed to process flow near the bore, which increases leak risk. Inner and outer rings help, but they cannot replace good bolt-up practice. Kammprofile gaskets are often less sensitive to uneven bolt loads because they compress less and load faster, and the rigid core can reduce the impact of slight flange non-parallelism. Still, both gasket types require clean flange faces, correct bolt condition, and disciplined tightening sequences.
Handling damage is a common hidden cause of early leaks. Spiral wound designs can “spring” when dropped or flexed, and the windings may loosen or distort, especially on large diameters where the gasket can sag under its own weight during transport. Once the winding geometry changes, sealing becomes unpredictable, and scrap rates rise. Kammprofile gaskets generally handle better on large flanges because the solid core resists bending and keeps its shape during lifting and placement. When site conditions make careful handling difficult, that mechanical robustness can become a deciding factor even before you compare pressure and temperature limits.

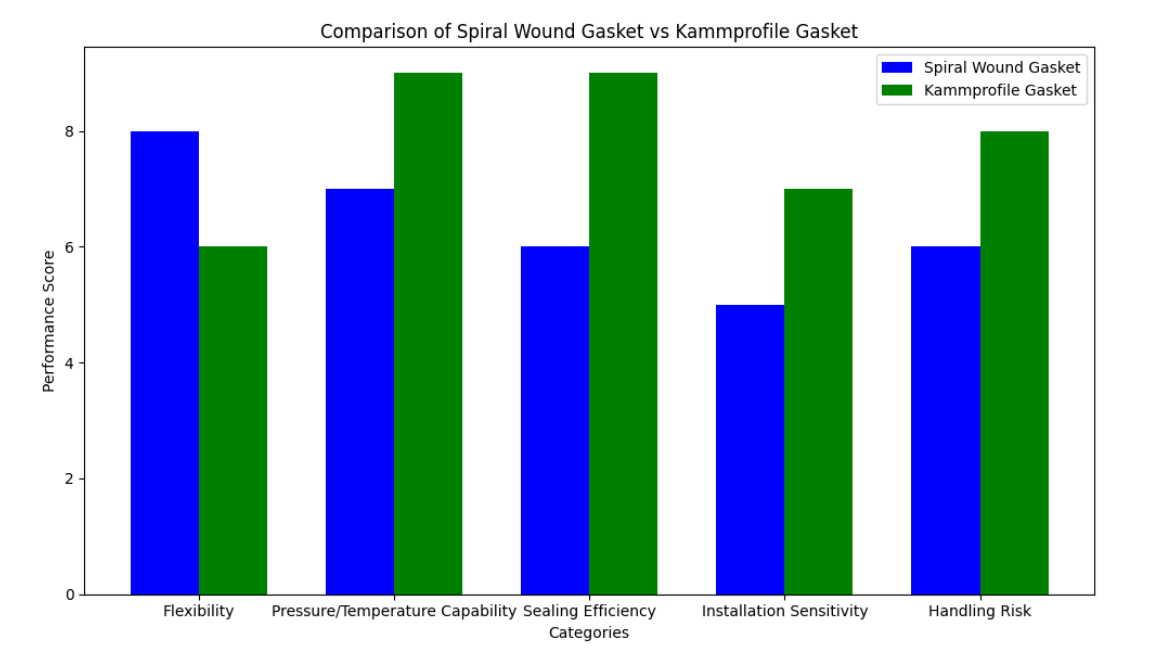

Factor | Spiral Wound Gasket | Kammprofile Gasket |
Core design | Wound metal + filler layers | Solid grooved metal core |
Sealing action | Compresses metal and filler | Facing deforms into grooves |
Recovery | High, good for movement | Lower, strong load retention |
Handling risk | Higher, can spring | Lower, rigid core |
Installation sensitivity | Higher, needs control | Lower, more tolerant |
Reuse potential | Usually single-use | Possible if core stays intact |
Cost | Often lower upfront | Higher upfront, lower lifecycle sometimes |
The Spiral Wound Gasket is widely used because it fits many standard flange joints and performs reliably when installed correctly. It is common in piping systems, pressure vessels, and heat exchangers where moderate flange movement and thermal cycling occur. Its recovery characteristics help it maintain contact as bolt load changes, and the wide choice of metal windings and fillers makes it adaptable across many plant services. For many routine applications, it becomes a practical baseline because it balances performance and cost while covering typical flange surface finishes.
Most Spiral Wound Gasket failures are preventable and trace back to handling or bolt-up issues. Windings can be damaged by impact, buckling can occur in certain joints if inner support is missing, and mis-centering can reduce sealing area or expose windings near the bore. Over-torque can crush filler and reduce recovery, while under-torque can leave leak paths that show up during heat-up. A strong prevention approach includes inspection for winding distortion, confirmation of correct ring configuration, cleaning flange faces, and using a cross-pattern tightening method in multiple incremental passes. Recording torque values and noting bolt condition also helps teams learn from repeat joints and reduce future leaks.
Spiral wound performance depends on the full build, not just the label. Filler choice changes chemical compatibility and temperature behavior, so it must match the process media and operating limits. Ring configuration changes stability and compression control, and adding an inner ring can reduce buckling risk in some flange designs. Metal winding selection affects corrosion resistance and strength, and many plants align winding alloy choices to the service environment and flange materials to reduce corrosion risk and unexpected degradation. Small specification details often decide whether the gasket behaves predictably during assembly and over the run cycle.
Kammprofile gaskets can deliver very tight sealing because their serrations concentrate load onto the facing layer and create multiple concentric sealing lines. This structure helps the facing conform to flange imperfections under bolt load, which can reduce leakage in difficult joints. They also tend to tolerate rougher sealing surfaces better than many alternatives, and they are often chosen for services where emission control and high sealing integrity matter. Their strong core adds blowout resistance and improves stability when bolt loads are high or when joint conditions are less than ideal.
Kammprofile gaskets may be reused in some situations, but only when the metal core remains intact and the facing can be properly restored. Reuse can be realistic when the core shows no bending, corrosion, or serration damage, and when the service risk level is manageable. It is usually not appropriate when the core is pitted, deformed, or when the service is high consequence due to safety, environmental, or regulatory concerns. In lifecycle terms, Kammprofile gaskets can reduce repeat leak interventions and outage labor, so the higher purchase price can be offset by fewer disruptions and more stable run periods, especially on critical exchanger joints or high-stress flanges.
The main tradeoffs are higher upfront cost and the need for careful material selection. The solid core and precision serrations require tighter manufacturing control, which can affect lead time for special sizes. Facing selection is also more sensitive because chemical compatibility and temperature limits depend on it, and a poor facing choice can reduce sealing reliability despite a strong core. For best results, the core alloy and facing should be selected as a matched system based on process media, temperature range, corrosion risk, and flange material pairing.
A Spiral Wound Gasket often fits general flange service where recovery is valuable, replacement is easy, and installation quality can be controlled. It works well when the joint sees movement and cycling, and when cost pressure favors a widely available solution. Kammprofile gaskets often make more sense when pressure and temperature are very high, when blowout resistance is critical, when emission targets are strict, or when flange faces are rough or imperfect. They also become attractive when large diameter handling issues repeatedly damage spiral wound gaskets before installation.
Flange condition can override preferences because gasket performance depends on geometry and surface reality. You should check surface finish quality, visible damage, flange parallelism, bolt-hole alignment, seating width, and available assembly space. Spiral wound designs can struggle in “too-close” flange situations or in joints where inner support is needed but not specified, while Kammprofile designs can be more forgiving on imperfect faces but still require stable seating geometry. If flanges are warped or severely damaged, gasket selection alone will not solve leakage, and joint repair should be part of the plan.
Risk-based selection keeps teams aligned across maintenance, reliability, and process safety. For low-consequence joints, a Spiral Wound Gasket may be acceptable because failure is easy to detect and fix. For high-consequence joints, reliability often matters more than purchase price, so Kammprofile gaskets can be justified if they reduce repeat leaks and unplanned work. A simple tier approach helps, using consequence, access difficulty, downtime cost, and environmental exposure to guide gasket choice. Documenting this logic supports consistent procurement and faster decisions during turnarounds.
A Spiral Wound Gasket is a combined system of metal winding and filler. Metal choices influence strength and corrosion resistance, while fillers drive sealing performance and chemical compatibility. Graphite and PTFE are common fillers, but they behave differently under temperature and media exposure, so the process environment should guide selection. The spiral construction can help protect filler and maintain structure, yet it does not eliminate the need to verify limits for temperature, oxidation, and chemical attack. Selecting materials as a system reduces surprises after start-up.
Kammprofile gaskets depend on both core alloy and facing material. Core alloy selection should reflect corrosion risk, temperature exposure, and compatibility with flange materials to reduce galvanic and thermal mismatch issues. Facing selection should match media chemistry, temperature range, and emission goals. Because the facing is the primary sealing surface, it must be chosen carefully for long-term stability. Many teams align core material to the flange seat material where practical, but final selection should follow the operating envelope and inspection history of the joint.
Standards reduce dimensional mismatch and support consistent procurement. Spiral wound gaskets often follow ASME B16.20, while flange dimensions commonly follow ASME B16.5 or ASME B16.47 in many systems. Other projects may specify DIN, JIS, or BS standards, and some packages may include API requirements depending on the system. When standards differ, “equivalent” can be misleading because ring styles, seating widths, and dimensions can shift. Verifying the exact standard and flange class in the datasheet helps avoid “fits but leaks” scenarios.
Spiral wound gaskets reward disciplined installation. A reliable approach starts by verifying gasket size and ring configuration, then inspecting for winding distortion or springing. Flange faces should be cleaned and checked for damage, and the gasket should be centered using its ring features. Bolt tightening should follow a cross-pattern sequence in multiple incremental passes to control flange tilt and ensure uniform compression. Teams should also watch for red flags such as visible winding separation, dented rings, crushed filler areas, or degraded storage condition. Recording final torque and bolt condition helps diagnose future issues and supports consistent work quality across crews.
Kammprofile gaskets typically compress less, so they often reach seating stress faster, but they still need controlled tightening and clean surfaces. Installers should inspect serrations and facing condition, remove burrs and residue from flange faces, and tighten bolts in steps using a cross pattern to avoid uneven loading. Over-torque can crush the facing and reduce long-term sealing stability, while poor bolt condition can create uneven stress even when torque values look correct. During shutdowns, inspection should focus on facing wear, corrosion, and any core deformation, and retorque plans should follow the service criticality and bolt material behavior.
Instrumentation penetrations often use dedicated sealing designs rather than flange-style gaskets. RF cable feedthroughs may require compression seals, O-rings, or gland systems that also support moisture barriers and shielding needs. While the same fundamentals apply, such as controlled compression and material compatibility, a Spiral Wound Gasket usually does not match the geometry or function of these enclosures. Using a flange gasket where a feedthrough seal is required can lead to rapid leakage, poor environmental sealing, or inconsistent assembly. For these interfaces, the enclosure specification and ingress requirements should guide the sealing approach, and the chosen seal should match the mechanical design intent.
Both Spiral Wound Gaskets and Kammprofile Gaskets can deliver reliable seals, depending on the joint and service conditions. Spiral Wound Gaskets are ideal for flexible, general flange service, while Kammprofile Gaskets excel in critical sealing applications under high pressure and temperature. Selecting the right gasket requires considering flange condition, joint criticality, and installation control. Ningbo Dongheng Sealing Co., Ltd. offers high-quality sealing solutions designed to meet these diverse needs, ensuring durability and performance in challenging environments.
A: A Spiral Wound Gasket combines metal and soft filler layers to form a flexible seal, while a Kammprofile Gasket features a solid metal core with serrated grooves and a soft facing material. Kammprofile gaskets are more rigid and provide better sealing in extreme conditions.
A: Use a Spiral Wound Gasket for flexible, general flange applications where recovery from pressure and temperature fluctuations is important. It works well in piping systems and vessels under moderate service conditions.
A: Kammprofile Gaskets offer superior blowout resistance due to their solid core and efficient sealing, making them ideal for high-pressure and high-temperature services where sealing integrity is crucial.
A: Spiral Wound Gaskets require precise centering and controlled bolt tightening to avoid damage. Kammprofile Gaskets are easier to install, more forgiving of uneven bolt loads, and load faster.
A: Spiral Wound Gaskets are typically single-use, especially if damaged during disassembly. They may need to be replaced to maintain seal integrity.
A: Spiral Wound Gaskets are generally less expensive upfront, while Kammprofile Gaskets have a higher initial cost but offer better reliability and longer service life in critical applications.
