Are you unsure if spiral wound gaskets work with flat face flanges? Many professionals face this dilemma. Selecting the right gasket is crucial for effective sealing in various applications.
In this article, we will explore the compatibility of spiral wound gaskets with flat face flanges. You'll learn about their construction, benefits, and installation best practices. Let’s dive in and discover how to ensure a reliable seal in your projects!

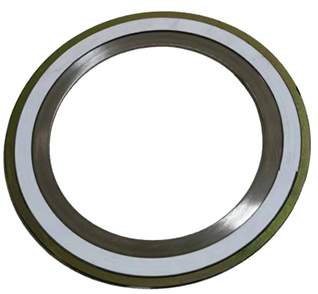

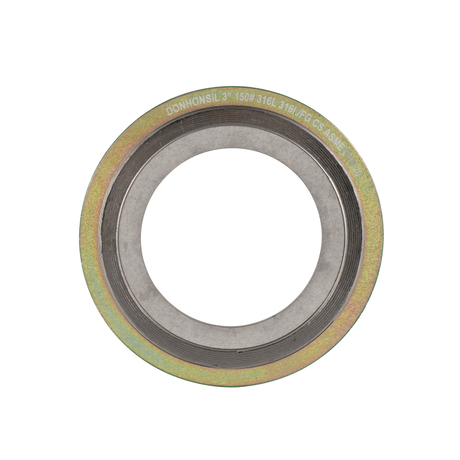

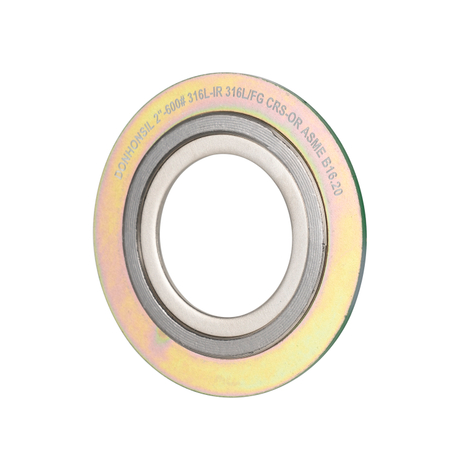

Spiral wound gaskets are innovative sealing solutions made from alternating layers of metal strips and non-metallic fillers. This unique construction provides several advantages:
● Flexibility: The design allows the gasket to adapt to minor surface irregularities, ensuring a tight seal.
● Resilience: They maintain their shape and sealing capability even under fluctuating pressures and temperatures.
● Pressure Tolerance: Suitable for high-pressure applications, these gaskets can handle extreme conditions effectively.
The production of spiral wound gaskets involves a meticulous process that ensures high quality and performance. Here’s a quick overview:
1. Cutting: Metal strips are cut to precise dimensions.
2. Forming: The strips are shaped into a spiral configuration.
3. Winding: Layers of metal and filler materials are wound together to create the gasket.
4. Spot Welding: This technique is used to secure the layers, enhancing durability.
Material thickness plays a crucial role in the performance of spiral wound gaskets. Thicker materials can withstand higher pressures, while the quality of the metal and filler directly impacts sealing effectiveness.
Different styles of spiral wound gaskets cater to various applications, especially in demanding environments. Here’s a brief overview of some common types:
Style | Description | Benefits |
Style R | Basic spiral wound gasket without fillers | Ideal for tongue and groove flanges |
Style RIR | Features an inner ring to prevent solid accumulation | Reduces turbulence and minimizes erosion |
Style CG | Centering ring provides extra radial strength | Suitable for both flat face and raised face flanges |
Style CGI | Combines centering and inner ring features | Designed for high temperature and pressure applications |
Each type has specific benefits depending on the application. For instance, Style R is widely used in standard flange connections, while Style CGI is perfect for severe conditions where temperature and pressure are critical.
Understanding these aspects of spiral wound gaskets can significantly enhance your sealing solutions. Whether you're in chemical processing, oil and gas, or any industry requiring reliable seals, knowing the right type to use is essential for ensuring system integrity.
Flat face flanges are a type of flange designed with a completely flat sealing surface. This design allows the gasket to sit flush against the flange, creating a uniform sealing area. Key characteristics include:
● No Raised Surface: Unlike raised face flanges, flat face flanges lack any elevation, which makes them easier to align during installation.
● Standardized Dimensions: They typically follow ANSI/ASME standards, ensuring compatibility across various applications.
These flanges are commonly used in industries such as water treatment, chemical processing, and low-pressure systems. Their straightforward design makes them a popular choice for applications where high pressure isn't a concern.
Flat face flanges come with several benefits, but they also have some drawbacks:
Benefits:
● Ease of Installation: The flat surface simplifies the alignment process, making it quicker to install.
● Cost-Effectiveness: Generally, these flanges are less expensive than their raised face counterparts, reducing overall project costs.
Challenges:
● Leakage Potential: Since the bolt load is distributed over a larger area, achieving a tight seal can be more difficult. This increases the risk of leaks, especially in dynamic applications.
● Limited Pressure Handling: They are not ideal for high-pressure situations, making them unsuitable for some industrial applications.
Flat face flanges find their place in various industries, particularly where lower pressure and temperature conditions prevail. Here are some common applications:
Industry | Application Example |
Water Treatment | Used in pipelines for transporting water |
Chemical Processing | Ideal for non-corrosive, low-pressure fluids |
Food and Beverage | Common in processing plants where cleanliness is crucial |
HVAC Systems | Utilized in ductwork connections |
These examples highlight the versatility of flat face flanges. They work well in environments where the sealing medium is not under extreme stress, ensuring reliable performance.
When considering the use of spiral wound gaskets on flat face flanges, understanding the characteristics and limitations of the flanges is essential. This knowledge helps ensure that you choose the right sealing solution for your specific application.
Yes, spiral wound gaskets can be effectively used with flat face flanges. Their construction allows them to provide a reliable seal even when faced with the challenges of a flat surface. However, several factors influence their compatibility:
● Pressure: The operating pressure of the system is crucial. Spiral wound gaskets are designed to handle moderate to high pressures, making them suitable for various applications.
● Temperature: The temperature of the fluid being sealed also matters. These gaskets can withstand a wide temperature range, but it’s essential to check material specifications.
● Fluid Type: The chemical properties of the fluid can affect gasket performance. Ensure that the materials used in the gasket are compatible with the fluid to prevent degradation.
Using spiral wound gaskets on flat face flanges offers several benefits:
● Enhanced Sealing Performance: Despite the inherent challenges of flat face flanges, spiral wound gaskets can create a strong seal. Their design helps them compress evenly, which minimizes leakage.
● Flexibility: They can accommodate minor surface irregularities, which is beneficial for flat face flanges that may not have perfectly smooth surfaces.
● Comparison with Other Gasket Types: When compared to full-face gaskets, spiral wound gaskets often provide better sealing capabilities in high-pressure applications. Their ability to handle pressure fluctuations makes them a preferred choice.
While spiral wound gaskets are versatile, there are situations where they might not be the best fit:
● High-Pressure Applications: In extremely high-pressure situations, other gasket types may provide better performance. It’s crucial to evaluate the specific requirements of your application.
● Surface Condition: If the flat face flanges have significant wear or damage, the effectiveness of the spiral wound gasket may be compromised. Regular inspection of flange surfaces is essential for optimal sealing.
To ensure effective sealing when using spiral wound gaskets, consider the following recommendations:
● Proper Installation: Follow guidelines for installation to achieve the best results. Ensure even bolt tension to avoid localized stress.
● Regular Maintenance: Implement routine checks to monitor gasket integrity. This helps in identifying potential issues before they lead to failures.
By understanding the compatibility of spiral wound gaskets with flat face flanges, you can make informed decisions that enhance the reliability of your sealing solutions.
Before you dive into installing a spiral wound gasket, preparing the flange surfaces is crucial. The quality of these surfaces directly impacts the effectiveness of the seal. Here’s what to keep in mind:
● Surface Quality: Ensure that the flange faces are smooth and free from any defects. Imperfections can lead to leaks.
● Cleaning and Inspecting Flanges: Use a suitable solvent to clean the flanges thoroughly. Inspect for rust, dirt, or old gasket material. If any debris is present, it can compromise the seal. A clean surface allows the gasket to perform optimally.
Installing a spiral wound gasket on flat face flanges requires careful attention to detail. Follow these steps for a successful installation:
1. Align the Gasket: Place the spiral wound gasket carefully on the flange face. Make sure it is centered and aligned properly.
2. Position the Flanges: Bring the two flanges together gently. Avoid forcing them, as this can damage the gasket.
3. Bolt Tightening:
● Start by tightening the bolts in a crisscross pattern. This ensures even pressure across the gasket.
● Use a torque wrench to apply the specified torque values. This helps achieve the right compression for a proper seal.
4. Final Checks: After tightening, double-check the alignment and ensure there are no gaps between the flanges.
Tips for Achieving Optimal Sealing:
● Use a lubricant on the bolts to prevent galling and ensure smooth tightening.
● Consider the environment: if the application involves high temperatures or pressures, verify the gasket material is suitable.
Even experienced technicians can make mistakes during installation. Here are some common pitfalls to watch out for:
● Ignoring Surface Preparation: Skipping the cleaning and inspection steps can lead to seal failures. Always prioritize surface quality.
● Incorrect Torque Application: Over-tightening or under-tightening bolts can cause leaks. Stick to the manufacturer’s torque specifications.
● Misalignment: Failing to align the gasket properly can create uneven pressure, resulting in leaks. Always double-check alignment before final tightening.
● Using Old Gaskets: Reusing old gaskets can compromise the seal integrity. Always use a new spiral wound gasket for optimal performance.
By following these installation best practices, you can enhance the reliability of your sealing solutions and minimize the risk of leaks in your systems.
Regular maintenance is essential for ensuring the longevity and effectiveness of spiral wound gaskets. Routine checks help identify potential issues before they escalate. Here’s why maintenance matters:
● Integrity Checks: Frequent inspections can reveal any signs of wear or damage. This allows for timely interventions, reducing the risk of leaks.
● Signs of Wear or Failure: Keep an eye out for specific indicators, such as:
○ Visible Deformation: Look for any changes in the shape of the gasket.
○ Fluid Leakage: Any signs of fluid escaping around the flange indicate a compromised seal.
○ Surface Cracking: Cracks or splits in the gasket material can signal degradation.
Conducting these checks regularly can save time and money by preventing unexpected failures.
Knowing when to replace a spiral wound gasket is crucial for maintaining system integrity. Here are some key indicators that a gasket needs replacement:
● Persistent Leaks: If leaks continue after tightening, it’s a strong signal that the gasket has failed.
● Material Degradation: Look for signs of corrosion, brittleness, or discoloration. These can all indicate that the gasket has reached the end of its service life.
● Irregular Compression: If the gasket shows uneven wear patterns, it may not be sealing properly and should be replaced.
Best Practices for Gasket Replacement:
1. Remove Old Gasket Carefully: Use appropriate tools to avoid damaging the flange surfaces.
2. Clean Flange Surfaces: Thoroughly clean the flanges before installing a new gasket to ensure a proper seal.
3. Use New Gaskets Only: Always opt for new spiral wound gaskets to guarantee optimal performance and reliability.
4. Follow Manufacturer Guidelines: Adhere to specific recommendations regarding installation and torque settings for the new gasket.
By implementing a solid maintenance and inspection routine, you can ensure the reliability of your sealing solutions and extend the lifespan of your spiral wound gaskets. Regular attention to these details will help keep your systems running smoothly.
This article discusses the suitability of spiral wound gaskets for flat face flanges. It highlights their advantages, such as enhanced sealing performance and flexibility. Regular maintenance practices are essential to ensure gasket integrity. Proper installation and timely replacement are crucial for optimal performance. When selecting gaskets, consider specific application needs. Dongheng Sealing offers high-quality spiral wound gaskets designed for reliability and efficiency, providing excellent value for various industrial applications.
A: Yes, spiral wound gaskets are suitable for flat face flanges due to their ability to create effective seals.
A: They provide enhanced sealing performance and can accommodate minor surface irregularities, making them ideal for various applications.
A: Ensure the flange surfaces are clean, align the gasket properly, and tighten the bolts evenly to achieve a secure seal.
A: Replace the gasket if you notice leaks, visible wear, or material degradation to maintain system integrity.
A: Yes, their durability and reliability often make spiral wound gaskets a cost-effective choice in the long run.
