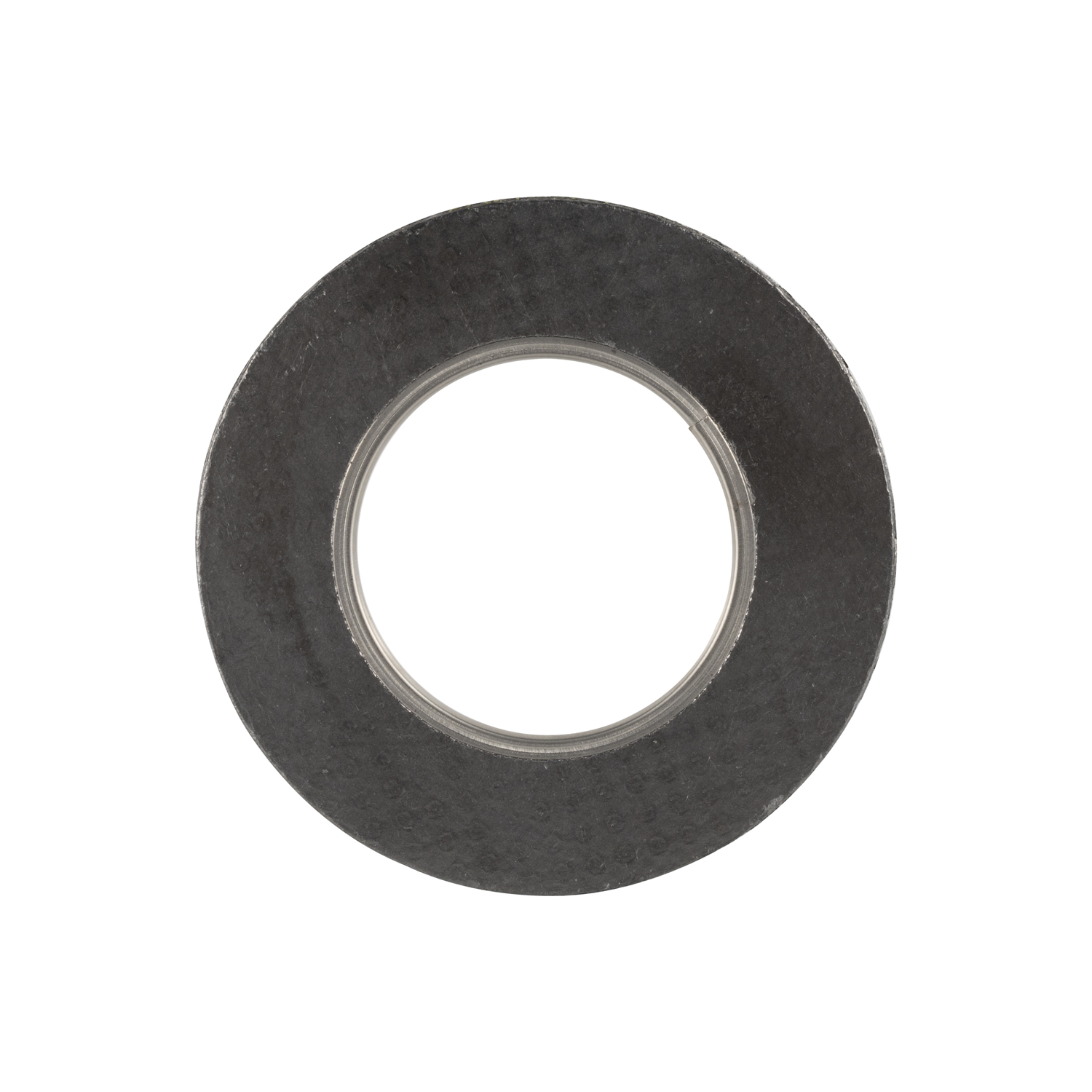

Poorly specified custom components carry severe operational and financial risks. Fluid leaks, unexpected equipment downtime, and delayed production schedules often stem from rejected prototypes or mismatched materials. When engineering intent fails to align with manufacturing reality, the results are costly. Incomplete 2D drawings or CAD files directly lead to inaccurate quotes, material mismatches, and tooling delays on the production floor.
This guide provides a systematic framework for translating engineering drawings into production-ready custom Gaskets. You will learn how to evaluate manufacturing partners, define critical dimensions, select appropriate materials, and mitigate procurement risks effectively without relying on guesswork.
Accurate gasket drawings must explicitly define inner/outer diameters, bolt hole positions, thickness, and acceptable tolerances to ensure accurate quoting and fitment.
Material selection must align with environmental realities (temperature, pressure, chemical exposure) rather than just baseline specifications to prevent premature failure.
The choice of manufacturing method (die cutting, waterjet, laser) directly impacts tooling costs, lead times, and scalability from prototype to high-volume production.
Selecting a manufacturer requires evaluating their specific equipment capabilities, material sourcing reliability, and adherence to industry quality standards (e.g., ISO, FDA, ASTM).
Table of Contents
A production-ready drawing leaves no room for interpretation on the shop floor. You must detail mandatory dimensional requirements clearly. This includes overall length and width, inner diameter (ID), and outer diameter (OD). Precise bolt hole coordinates are critical for installation. Always define the pitch circle diameter (PCD) to ensure proper alignment with mating flanges. If the PCD is off by even a fraction of an inch, the bolts will not pass through the flange and the sealing material simultaneously, rendering the part useless.
Defining realistic tolerances based on application criticality is equally important. Over-tolerancing exponentially increases manufacturing costs. Tight tolerances force manufacturers to use slower, more expensive cutting methods like precision waterjet rather than high-speed rotary die cutting. Specify tolerances that guarantee function without driving up production expenses unnecessarily. For standard elastomeric materials, a tolerance of +/- 0.015 inches is often standard, whereas demanding +/- 0.005 inches on a soft rubber part is physically impractical due to material deformation during the cutting process.
Proper material callouts on the drawing prevent catastrophic failures in the field. Move beyond generic terms like "rubber" or "foam." Specify exact durometers, material grades, and ASTM D2000 line callouts. This level of detail ensures the manufacturer sources the exact compound required for your application. For example, calling out "60 Durometer Nitrile (Buna-N)" is far more effective than simply writing "black rubber."
You must also specify material thickness and acceptable compression set limits. Thickness directly impacts the seal's ability to fill flange imperfections and bridge gaps. Compression set limits dictate how well the material recovers after being compressed under bolt load over extended periods. Missing these details often results in premature leakage, especially in applications subject to thermal cycling where the flanges expand and contract.
Understanding the utility of different file formats streamlines the quoting and production process. Standard 2D drawings, typically in PDF format, are essential for human review and quality assurance. They communicate tolerances, material callouts, revision histories, and critical inspection points that a machine cannot read.
Vector or CAD files, such as DXF, DWG, or STEP, are required for CNC, waterjet, or laser cutting equipment. The machine toolpath is generated directly from these vectors. A common risk during digital handoff is dimension mismatches between the PDF drawing and the provided CAD file. Always ensure both files reflect the exact same revision level before submission. If the PDF says the ID is 4.5 inches but the DXF measures 4.25 inches, production will halt until the discrepancy is resolved.
Sometimes you only have a physical part or mating flange in the field. You can measure these components using digital calipers to capture critical dimensions. Start by measuring the OD and ID at multiple points to account for any out-of-roundness. Then, determine the bolt-hole circle centerlines carefully. Record the diameter of the bolt holes and the distance between adjacent holes.
Use standardized custom measurement forms and templates to capture dimensional details accurately. These forms guide manual drafts and ensure you do not miss critical geometry like corner radii or asymmetrical hole patterns. Once documented, manufacturers can use this data to generate the necessary CAD files for production. When measuring a used part, be aware that it has likely been compressed and distorted; always measure the mating metal flange whenever possible for true dimensions.
Evaluating material compatibility against specific operational fluids is a mandatory step. You must assess how the material reacts to oils, solvents, acids, or water. A material that seals water perfectly might swell, degrade, or dissolve rapidly when exposed to hydraulic fluid or aggressive cleaning chemicals.
Environmental exposure also dictates material selection. Consider the impact of UV light, ozone, and general weathering. Materials placed outdoors require specific formulations to resist degradation, cracking, and hardening over time. EPDM, for instance, offers excellent ozone and weather resistance, making it superior to standard Neoprene for exterior enclosures.
Match operating temperature extremes with material thermal limits. Consider both continuous operating temperatures and intermittent thermal spikes during system startup or shutdown. Silicone performs exceptionally well in high-heat environments, often withstanding temperatures up to 450°F. EPDM is highly suited for weather and steam applications but will fail quickly if exposed to petroleum-based oils.
Internal system pressure dictates the required material hardness and tensile strength. High-pressure applications require materials with higher durometers and greater tensile strength to prevent blowout. Soft materials may extrude from the flange gap under high pressure, leading to a sudden loss of containment. In extreme pressure scenarios, you may need to transition from pure elastomers to reinforced materials or metallic options.
Different materials offer specific performance trade-offs and operational limits. Elastomers like Nitrile, Neoprene, and EPDM are common for general sealing. Nitrile resists oils, Neoprene handles moderate chemicals and physical wear, and EPDM excels in outdoor environments.
PTFE provides ultimate chemical resistance but requires specific flange designs due to its lack of memory and tendency to cold flow under pressure. Graphite is the standard for extreme temperatures and pressures, often used in petrochemical refining. Compressed non-asbestos fibers offer a reliable, rigid solution for general industrial applications involving water, steam, and mild chemicals.
Material Category | Primary Strengths | Common Limitations | Typical Applications |
|---|---|---|---|
Nitrile (Buna-N) | Excellent oil and fuel resistance | Poor ozone and UV resistance | Automotive, fuel systems, hydraulic seals |
EPDM | Superior weather, ozone, and steam resistance | Fails in petroleum-based fluids | Outdoor enclosures, HVAC, water systems |
Silicone | Extreme high and low temperature stability | Low tear strength, poor abrasion resistance | Medical devices, food processing, high-heat engines |
PTFE (Teflon) | Near-universal chemical resistance | Prone to cold flow (creep), requires high bolt load | Chemical processing, aggressive acids |
Flexible Graphite | Handles extreme heat and pressure | Fragile during handling and installation | Refineries, high-pressure steam lines |
Steel rule and rotary die cutting rely on physical tools to stamp out parts from sheet or roll stock. A steel rule die acts like a heavy-duty cookie cutter, pressing through the material into a sacrificial cutting board. Rotary dies use cylindrical tools for continuous, high-speed cutting, pulling material through a web at rapid rates. Both methods offer exceptional speed once the machine is set up and calibrated.
The return on investment for die cutting becomes clear at high volumes. The high initial tooling cost is quickly offset by a very low per-part cost. If you need thousands of identical parts, die cutting is usually the most economical choice. The physical die ensures absolute consistency across massive production runs, minimizing part-to-part variation.
Tool-less manufacturing methods like waterjet and laser cutting offer immense flexibility on the shop floor. They are ideal for rapid prototyping, complex geometries, and low-to-medium volume runs. The machine reads the CAD file and cuts the material directly without physical tooling. Waterjets use a high-pressure stream of water (sometimes mixed with abrasive garnet) to slice through thick or tough materials without creating a heat-affected zone.
The primary trade-off is a higher per-part cost compared to die cutting because the machine time per unit is longer. However, you avoid tooling investments entirely. This allows for faster initial turnaround times and makes design changes cost-effective during the development phase. If a bolt hole needs to move by a quarter inch, you simply update the DXF file rather than buying a new steel die.
Physical prototyping is vital before committing to high-volume runs. It allows you to validate fitment on the actual hardware. You can test sealing performance under actual bolt load and verify fluid compatibility in real-world conditions. A prototype might reveal that the selected material is too hard to conform to a pitted flange face, prompting a switch to a softer durometer.
Tool-less prototyping allows for cost-effective, rapid design iterations during research and development. If a prototype fails a pressure test, you simply update the CAD file and cut a new part the same day. This avoids the cost and lead time of modifying physical steel dies multiple times before finalizing the design.
Knowing when to transition from tool-less prototyping to hard tooling requires a clear decision matrix. Evaluate volume thresholds and lifecycle costs. If your annual usage increases significantly, the tooling cost for die cutting will pay for itself rapidly through reduced piece prices.
Work with your manufacturer to identify the break-even point. They can provide comparative quotes showing the cost of waterjet cutting versus die cutting at different volume tiers. This data drives smart procurement decisions and ensures you are utilizing the most efficient manufacturing method for your current product lifecycle stage.
Manufacturing Method | Tooling Cost | Per-Part Cost (High Vol) | Ideal Volume Range | Design Flexibility |
|---|---|---|---|---|
Waterjet Cutting | None ($0) | High | 1 - 500 parts | Excellent (Instant CAD updates) |
Laser Cutting | None ($0) | Medium-High | 1 - 1,000 parts | Excellent (Best for thin materials) |
Steel Rule Die Cutting | Low to Medium | Low | 1,000 - 10,000+ parts | Poor (Requires new die for changes) |
Rotary Die Cutting | High | Very Low | 10,000+ parts | Poor (Requires new rotary tool) |
Evaluate a vendor's facility to ensure they have the right mix of equipment. Look for die presses, waterjets, and flash cutters. A diverse equipment list means they can scale with your project from prototype to mass production without forcing you to switch suppliers mid-stream. If a vendor only has die presses, they will likely push you toward expensive tooling even for a small prototype run.
Evaluate their engineering support capabilities. A strong partner will review your drawings for manufacturability. They should suggest cost-saving design tweaks and identify potential failure points before production begins. For instance, they might recommend increasing a web width between two bolt holes to prevent the material from tearing during the cutting process.
Verifying certifications relevant to your application is non-negotiable. Look for ISO 9001 for general manufacturing reliability and consistent process control. If you operate in specialized sectors, demand FDA/NSF compliance for food grade applications or MIL-SPEC adherence for defense contracts. These certifications prove the vendor has audited systems in place to catch defects.
Discuss standard quality assurance processes with potential vendors. Require first article inspection (FAI) reports for new designs to verify that the initial production run matches your drawing exactly. Ensure they maintain strict material traceability, utilizing lot numbers and cure dates, to guarantee the integrity of the raw materials used in your Gaskets.
Single-source material dependencies create significant supply chain risks. Ensure your manufacturer has multiple avenues for sourcing critical compounds. This protects your production schedule from unexpected raw material shortages, shipping delays, or compounding facility shutdowns.
Evaluate a manufacturer's inventory depth for standard sheet materials. A robust inventory allows them to meet stated lead times without waiting for raw material deliveries. Ask about their stocking agreements for your specific material grades. If they keep your required 1/8-inch EPDM in stock at all times, your lead times will be measured in days rather than weeks.
Demanding tighter tolerances than the application requires is a common engineering mistake. It forces manufacturers into slower, more expensive cutting methods. It also increases scrap rates, as perfectly functional parts are rejected for falling outside unnecessarily strict boundaries. Rubber is a flexible material; it expands and contracts with temperature and humidity changes.
Review your tolerance requirements critically. Standard commercial tolerances are usually sufficient for most flange sealing applications. Reserve tight tolerances only for critical interfaces where slight deviations cause immediate mechanical interference. Trust the manufacturer's guidance on what tolerances are achievable for a specific durometer and thickness.
Specifying a material that loses its sealing force over time under constant load is dangerous. This phenomenon, known as creep relaxation or compression set, leads to delayed-onset leaks. The joint may pass initial pressure tests on the assembly line but fail months later in the field as the material permanently flattens out and loses its push-back against the flanges.
Always review the compression set data (often tested via ASTM D395) for your chosen material. Ensure it can maintain adequate recovery properties at your maximum operating temperature. Proper bolt torque procedures, including using a star pattern and tightening in stages, also help mitigate the effects of creep relaxation by ensuring even load distribution.
Submitting drawings without critical data causes immediate delays. Missing thickness callouts, undefined material grades, and absent volume estimates force the manufacturer to pause the quoting process. They must spend time tracking down the missing information via email, which extends your procurement timeline.
A complete RFQ package eliminates this friction. Provide all necessary dimensional data, material specifications, and clear volume requirements upfront. Include any specific packaging or labeling requirements as well. This allows the manufacturer's estimating team to return an accurate, comprehensive quote quickly.
File Preparation: Pair your digital CAD file (DXF/DWG/STEP) with a fully toleranced 2D drawing (PDF). Ensure both files match exactly in scale and revision level.
Define Application Parameters: Document temperature limits, internal pressures, chemical exposure, and environmental conditions clearly in your RFQ email or portal submission.
Specify Volumes and Target Lead Times: Clearly state prototyping quantities versus annual production volumes. This determines the optimal cutting process and allows the vendor to quote volume breaks.
Request Value-Add Terms: Ask for details on tooling ownership, first article inspection (FAI) options, and material certification sheets to ensure compliance.
Successful procurement relies on accurate engineering drawings, application-specific material selection, and aligning with a capable manufacturer. You must evaluate vendors based on their ability to ingest CAD files seamlessly, offer material expertise, and provide transparent pricing structures that separate tooling from piece price.
Drawing on more than 20 years of sealing craftsmanship, Ningbo Dongheng sealing develops and produces gasket, packing, and sealing-sheet solutions for mechanical, chemical, power, marine, food, pharmaceutical, aerospace, electronics, and related industries. Its OEM/ODM capabilities, technical consultation, emergency order handling, and after-sales support give buyers a practical path from drawing review and material selection to standard or customized sealing products.
Finalize your DXF and PDF files, ensuring all dimensions and tolerances are clearly marked.
Compile a comprehensive list of your environmental and operational requirements, including fluids, temperatures, and pressures.
Submit your complete drawing package to a qualified manufacturer for a technical review and formal quote.
Request material samples or a small prototype run to validate fitment before committing to high-volume production.
A: A complete drawing must include the inner diameter (ID), outer diameter (OD), material thickness, precise bolt hole patterns (PCD), specific material grades, and realistic tolerances. Missing any of these elements will delay the quoting process and risk improper fitment.
A: You should send both a dimensioned PDF and a vector file. The PDF is used for human review, quality assurance, and tolerance verification. The vector file, such as a DXF or DWG, is required by the manufacturer's cutting equipment.
A: Choose die cutting for high-volume production where the low per-part cost offsets the initial tooling investment. Choose waterjet cutting for prototypes, low-volume runs, or complex geometries where avoiding tooling costs and fast turnaround are priorities.
A: Tool-less prototypes cut via waterjet or laser can often be turned around in a few days. Custom-tooled production runs requiring steel rule dies typically take two to four weeks, depending on material availability and machine scheduling.
A: Yes. Reputable manufacturers provide application engineering support. If you provide them with your operating temperatures, internal pressures, and chemical media exposure, they can recommend the most reliable and cost-effective material for your specific application.
A: Tool-less methods like waterjet cutting often allow for single-digit MOQs, making them ideal for prototyping. Die cutting usually requires higher volumes (hundreds or thousands of parts) to justify the upfront cost of manufacturing the physical cutting tool.
A: Yes. Manufacturers can utilize physical measurement, optical scanning, and reverse-engineering capabilities to capture the dimensions of your physical part. They use this data to generate the necessary CAD drawings for production.
